Removal

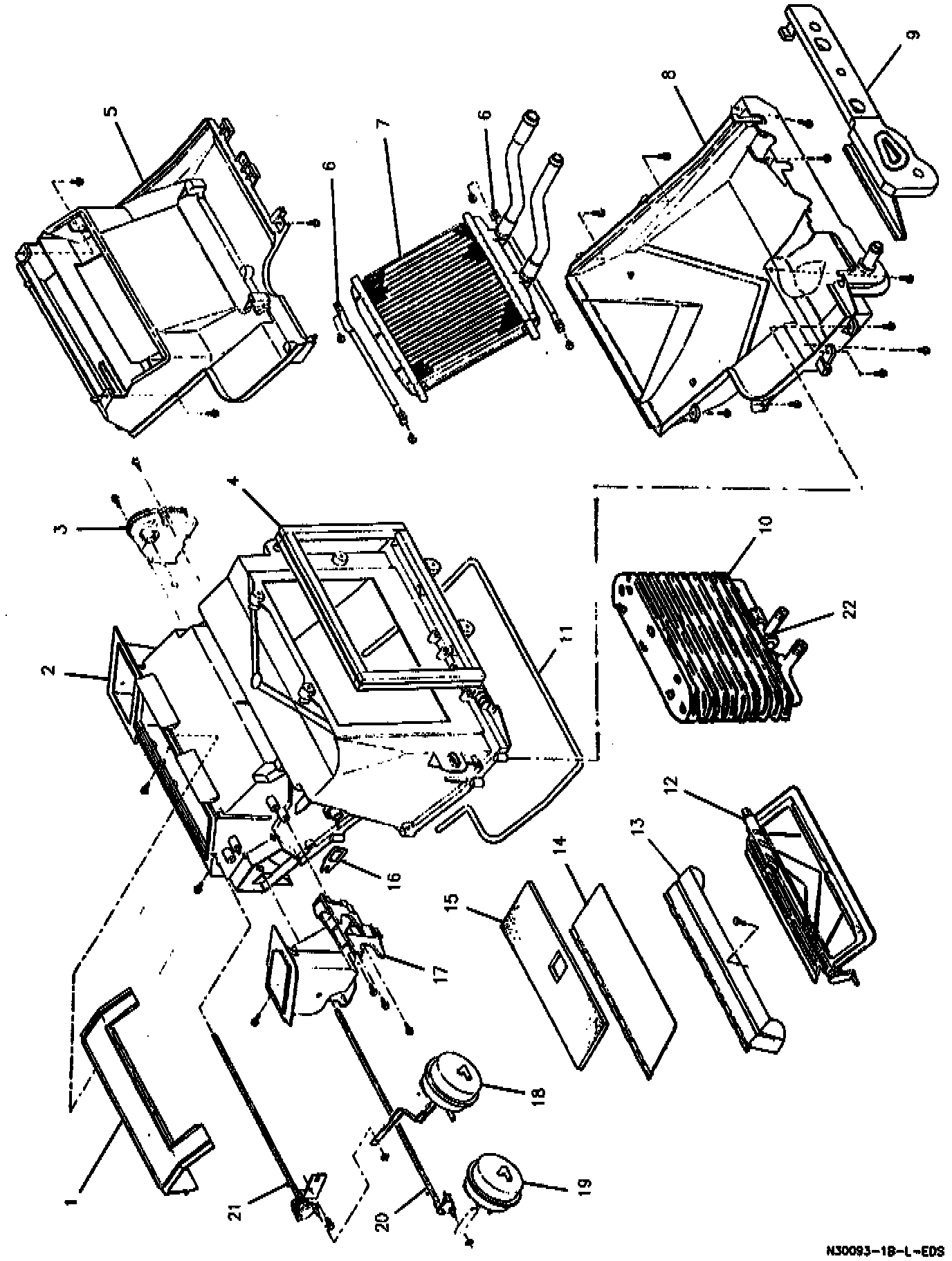

Heater Module ( 1 Of 2 ):

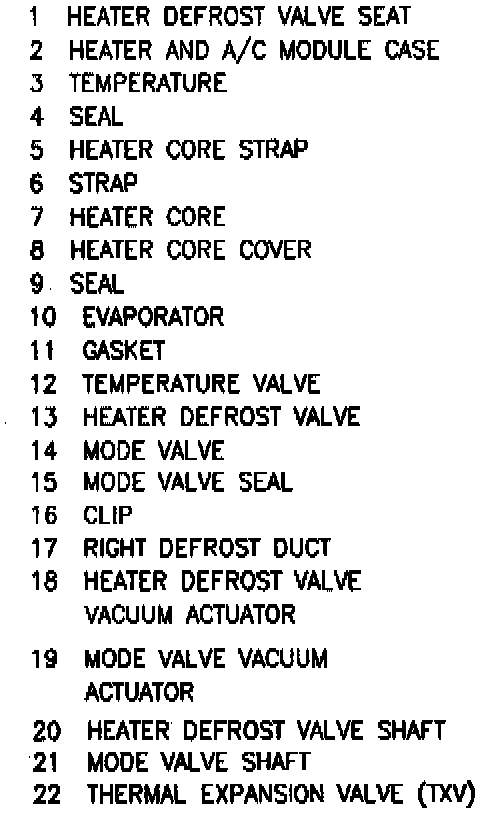

Heater Module ( 2 Of 2 ):

REMOVE OR DISCONNECT
1. Disable the Supplemental Inflatable Restraint (SIR) system, refer to Disabling the Supplemental Inflatable Restraint (SIR) System. Service and Repair
2. Negative battery cable.
3. Drain cooling system.
4. Raise vehicle.
5. Drain tube from heater case.
6. Heater hoses from heater core.
7. Lower vehicle.
8. Right and left sound insulators.
9. Steering column opening filler.
10. Floor air outlet duct.
11. Heater core cover.
12. Heater core mounting clamps and remove heater core.
