Torque Specifications

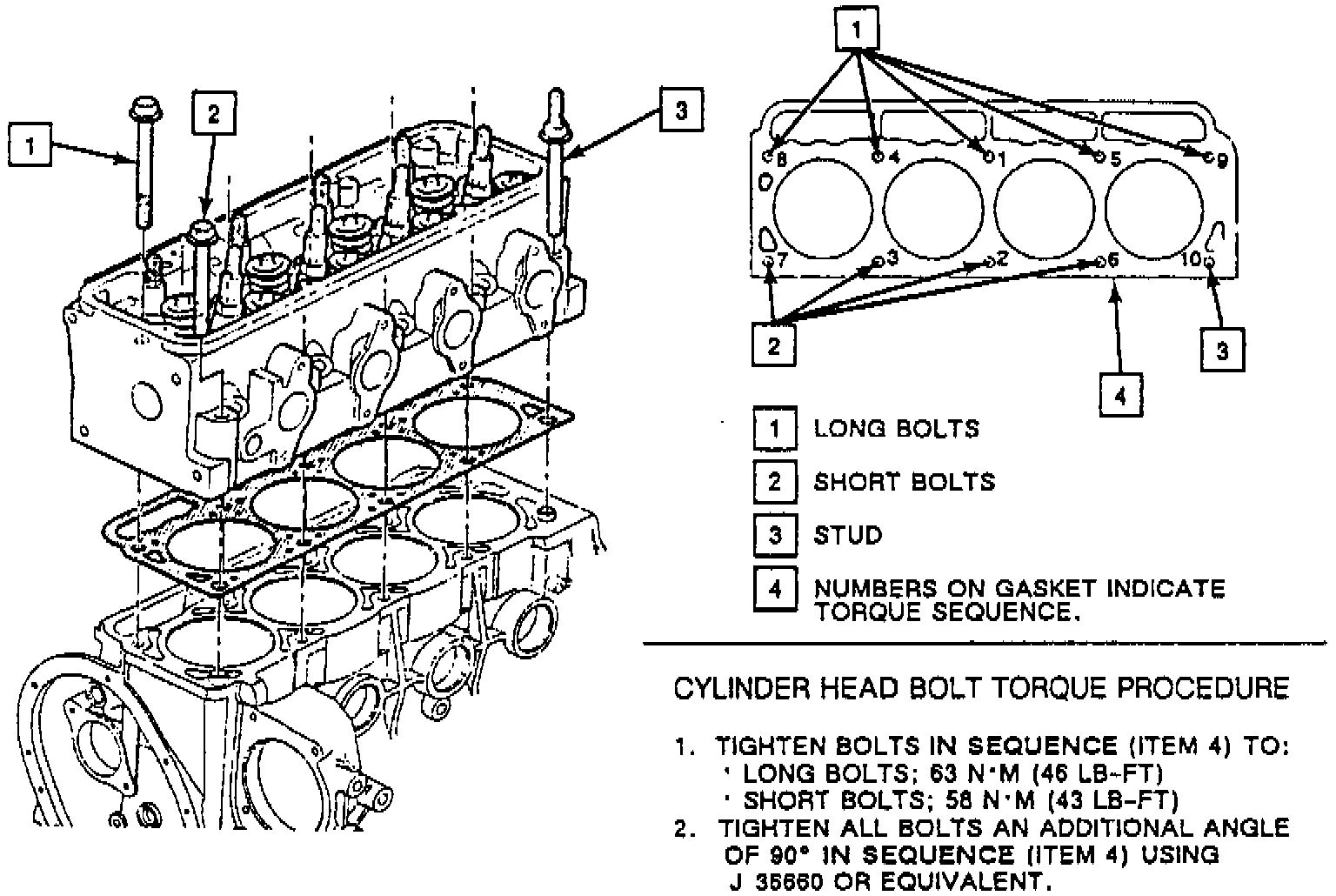

Cylinder Head BoltsFig. 8 Cylinder Head Bolt Tightening Sequence:
In the sequence shown (refer to figure 8):
1.
Torque long bolts to
63 Nm (46 lbs. ft.) Torque short bolts to
58 Nm (43 lbs. ft.) 2.
Tighten bolts an additional
90°
