Multiport Fuel Injection - Revised Schematic

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 43-81-27

Date: November, 1994

SERVICE MANUAL UPDATE

Subject:
Section 8A - Revised Schematic for Multiport Fuel Injection: V6 (VIN M)

Models:
1994 Buick Skylark
1994 Chevrolet Beretta, Corsica
1994 Oldsmobile Achieva
1994 Pontiac Grand Am

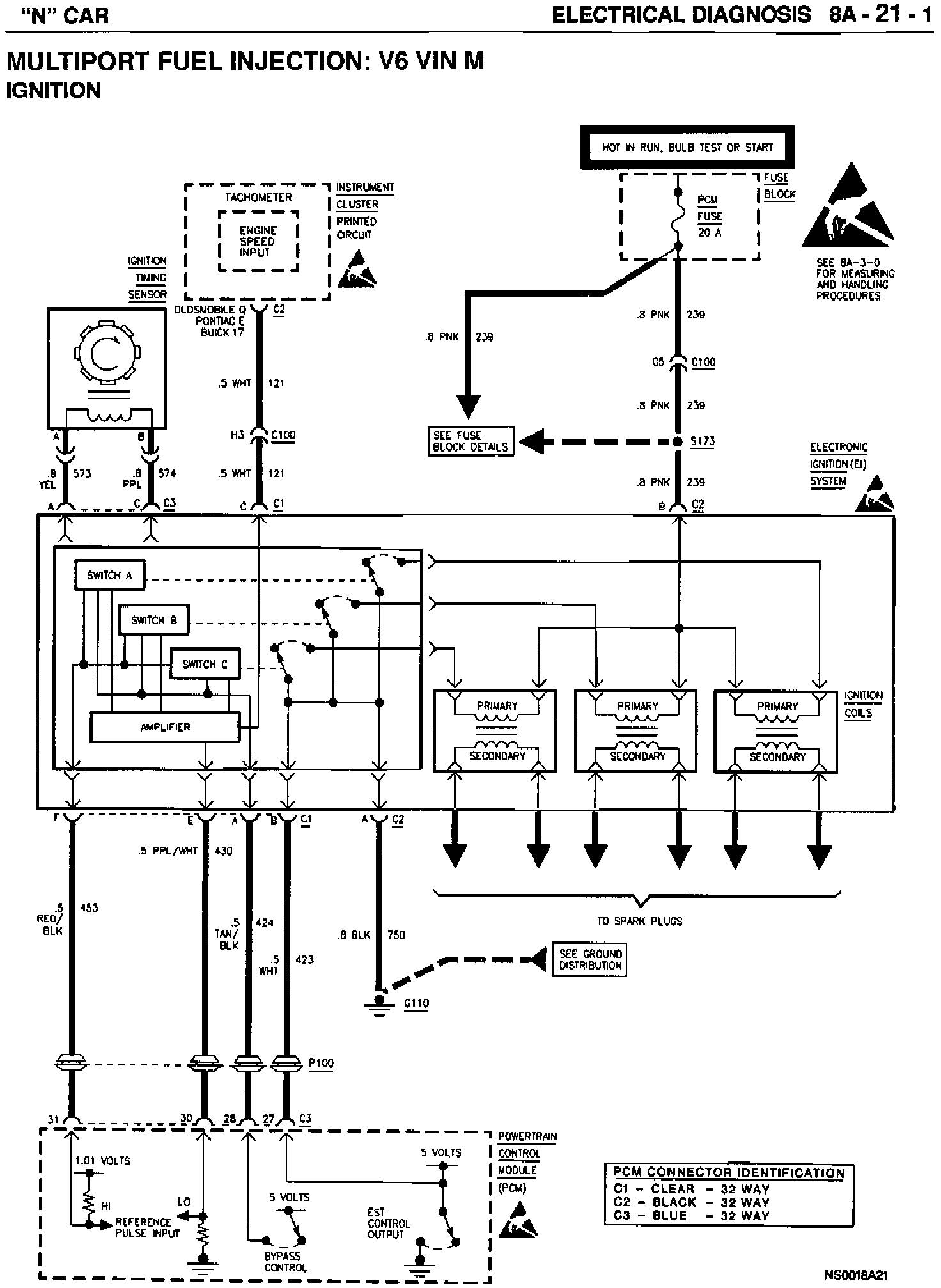

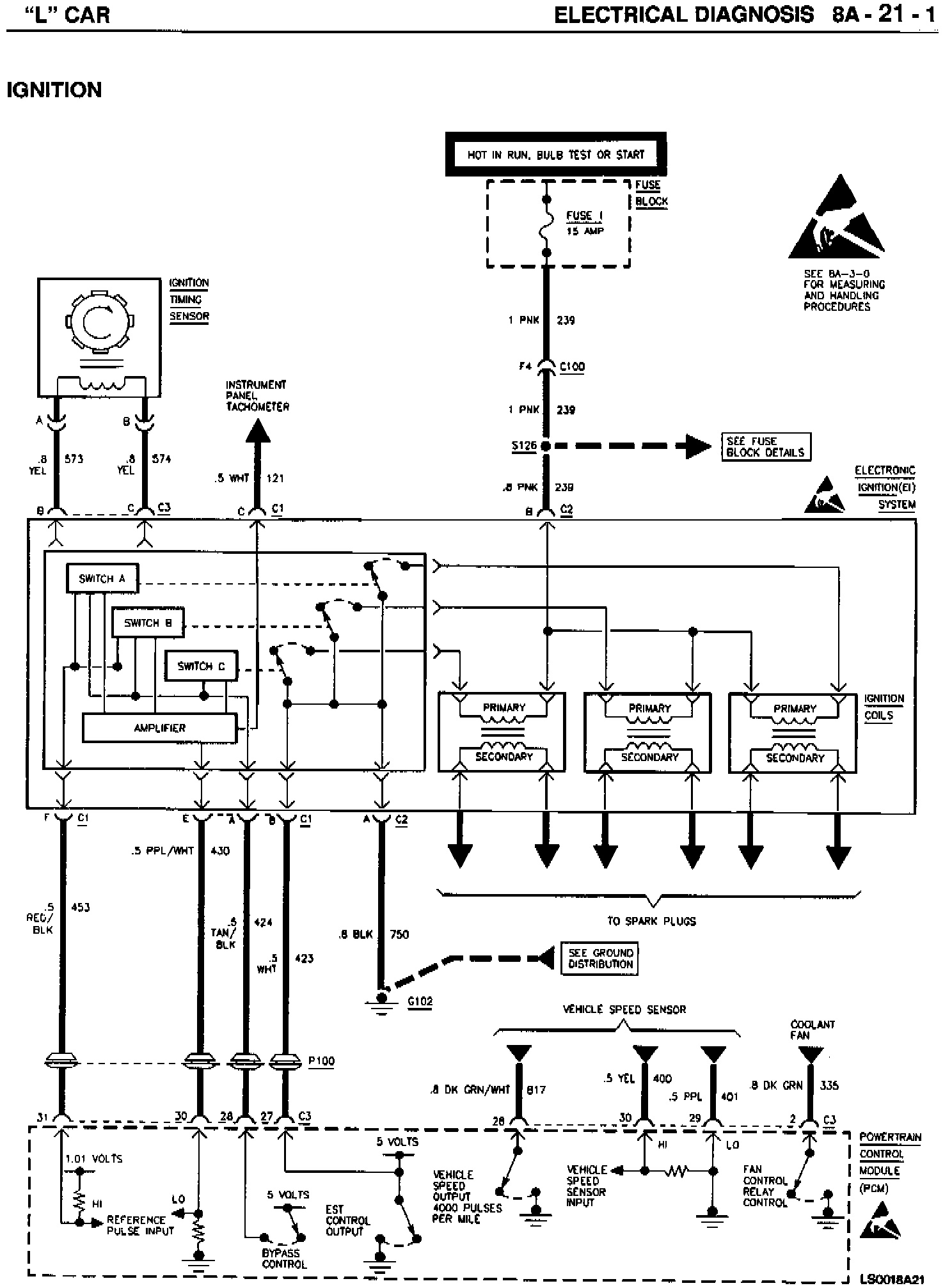

Please replace the schematic found in Section 8A-21-1 of the appropriate Service Manual with this update.

The schematic has been updated with the ignition timing sensor (crankshaft position sensor - 3x).
