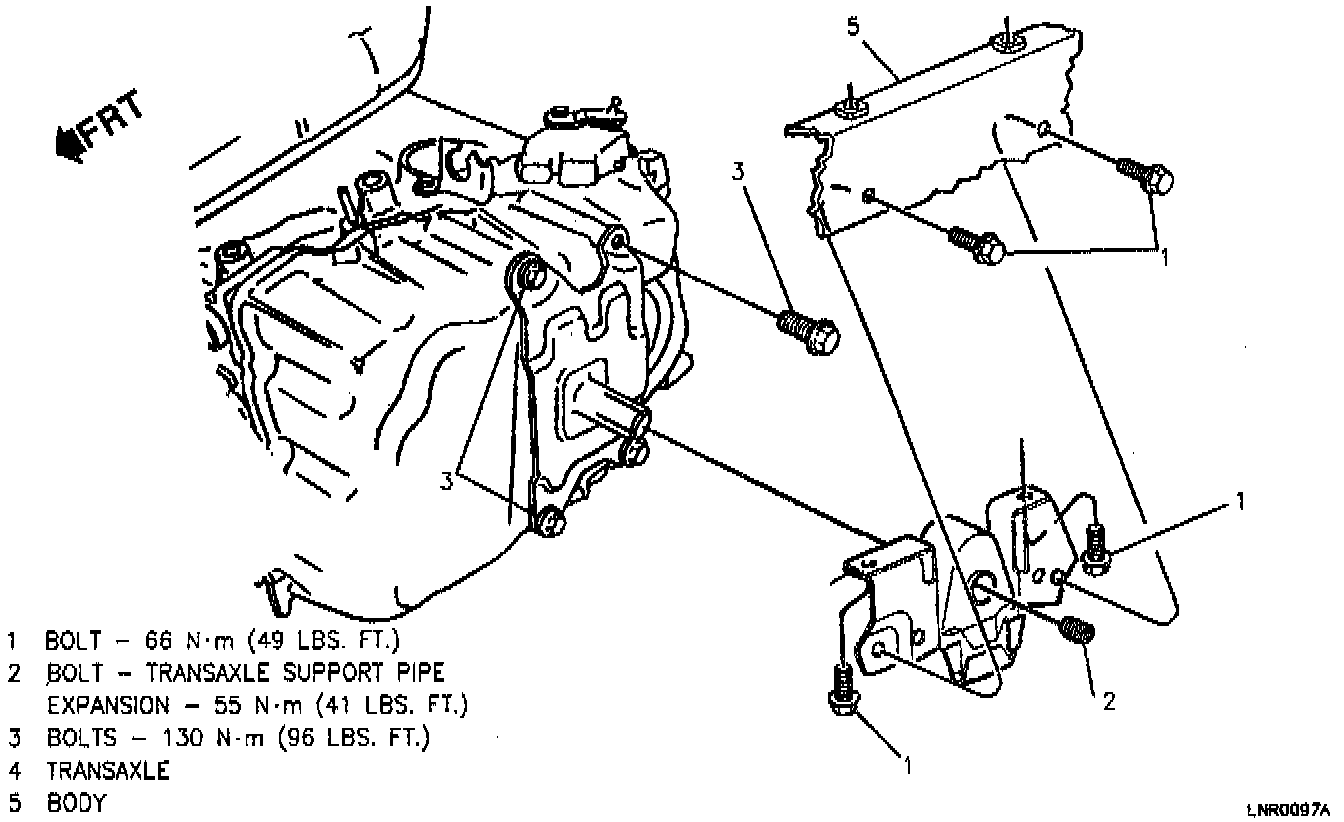

Transaxle Mount


TRANSAXLE MOUNT






TOOL REQUIRED
^ J 28467-A Engine Support Fixture

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Install engine support fixture, J 28467-A.
3. Raise vehicle and suitably support.
4. Left front tire and wheel assembly.
5. Left front splash shield.
6. Transaxle mount to body fasteners.
7. Transaxle mount to transaxle fasteners.

INSTALL OR CONNECT
1. Mount into position.
2. Transaxle mount to transaxle fasteners.
3. Transaxle mount to body fasteners.
4. Left front splash shield.
5. Left front tire and wheel assembly
6. Lower vehicle.
7. Remove engine support fixture.
8. Negative battery cable.
