Synchronizer

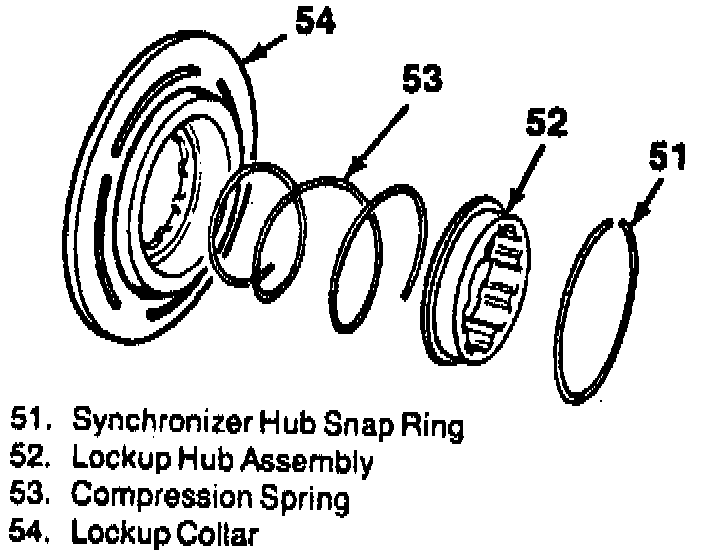

1. Remove snap ring from synchronizer hub assembly.

2. Remove lock-up hub and compression spring from lock-up collar.

3. Reverse procedure to install.
