Fastener Tightening Specifications - Cylinder Head

Cylinder Head Bolts

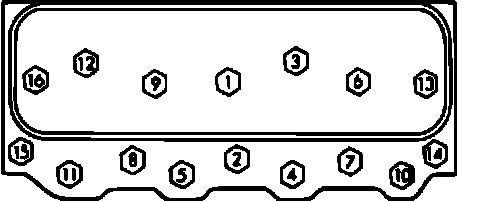

Cylinder Head Bolt Tightening Sequence 454:






In the sequence shown (refer to image):

1. Torque bolts to 30 lb ft
2. Torque bolts to 60 lb ft
3. Torque bolts to 80 lb ft
