TPS - Wiring and Branch Circuit Revisions

Group Ref.: Engine Fuel & Emission & mission

Bulletin No.: 416504

Date: April, 1994

SERVICE MANUAL UPDATE

SUBJECT:
SECTION 6E3-A - TPS WIRING AND BRANCH CIRCUIT REVISIONS

MODELS:
1993-94 CHEVROLET CAMARO
1993-94 PONTIAC FIREBIRD WITH 3.4L V6 ENGINE (VIN S - RPO L32)

This bulletin contains revisions to Section 6E3-A.

Please make these corrections to the pages listed below.

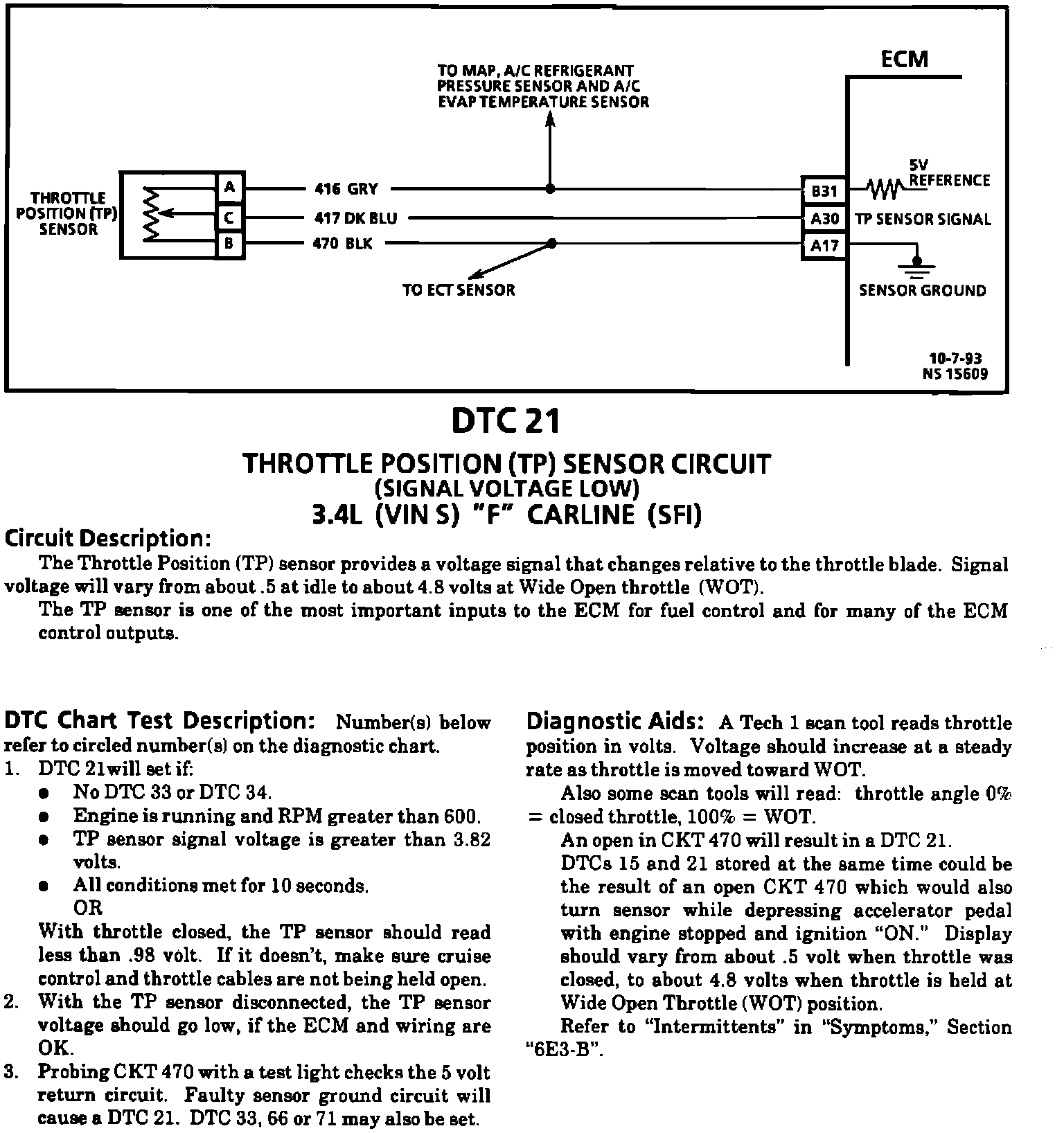

1993 6E3 Page A-44

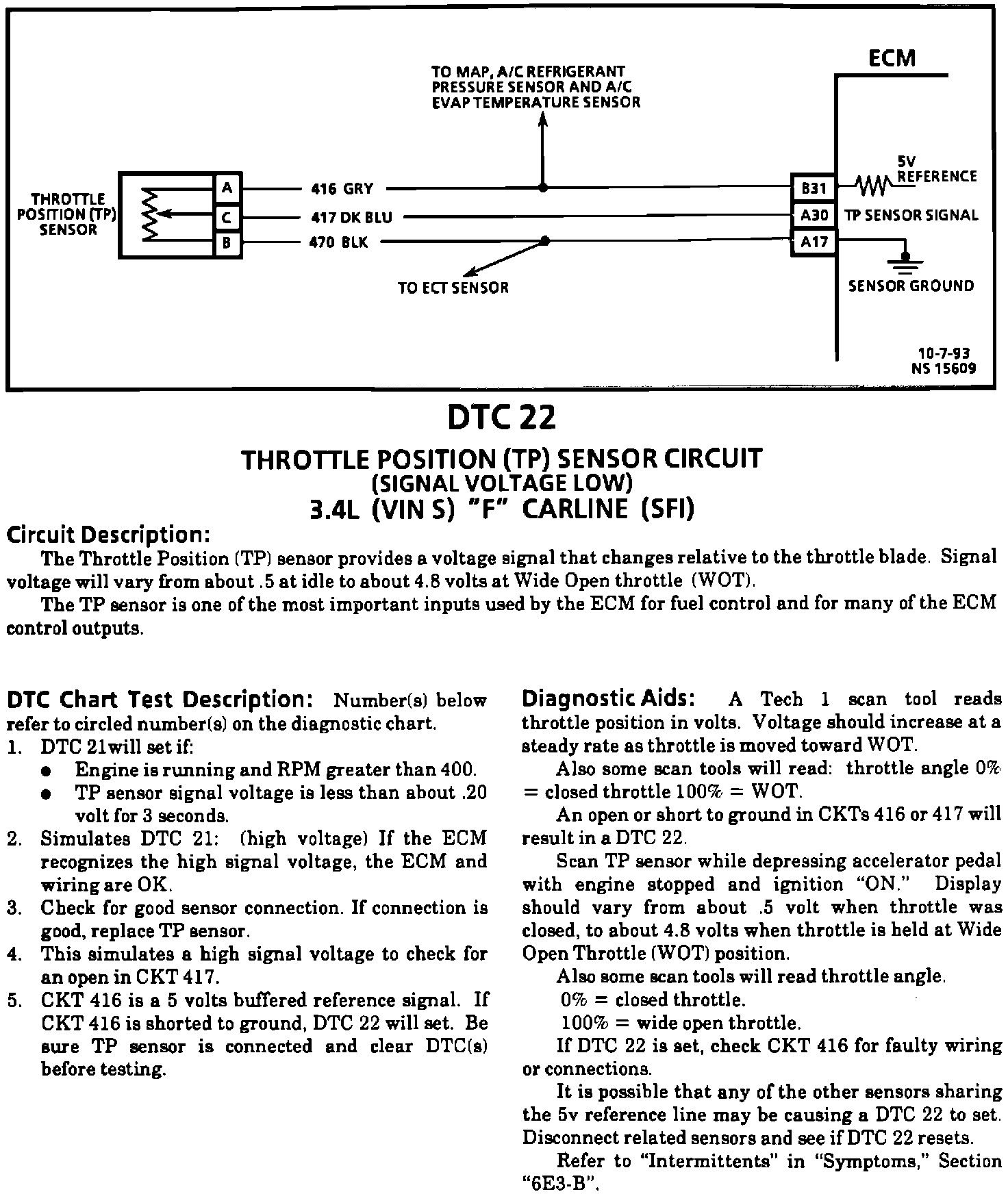

1993 6E3 Page A-46

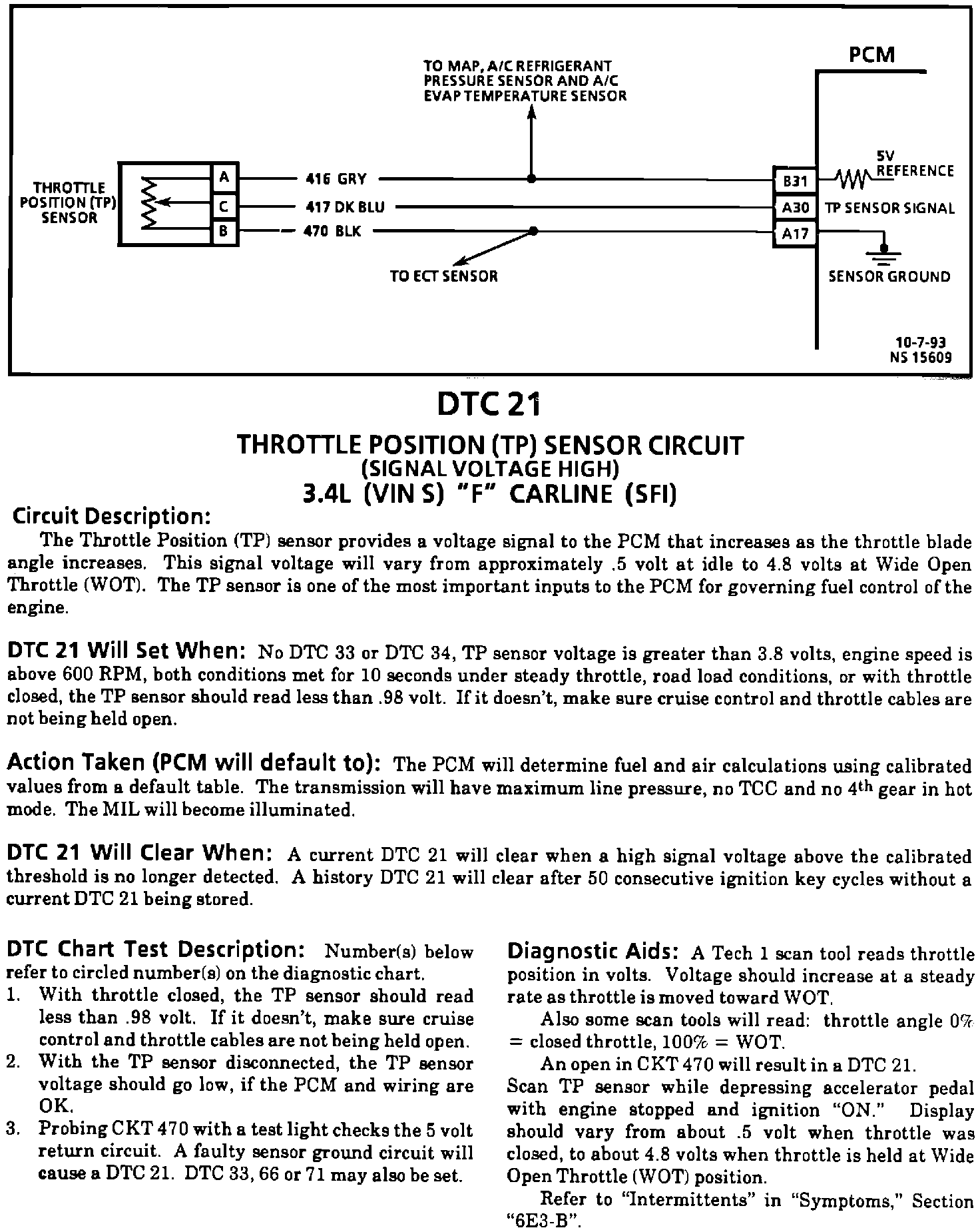

1994 6E3 Page A-48

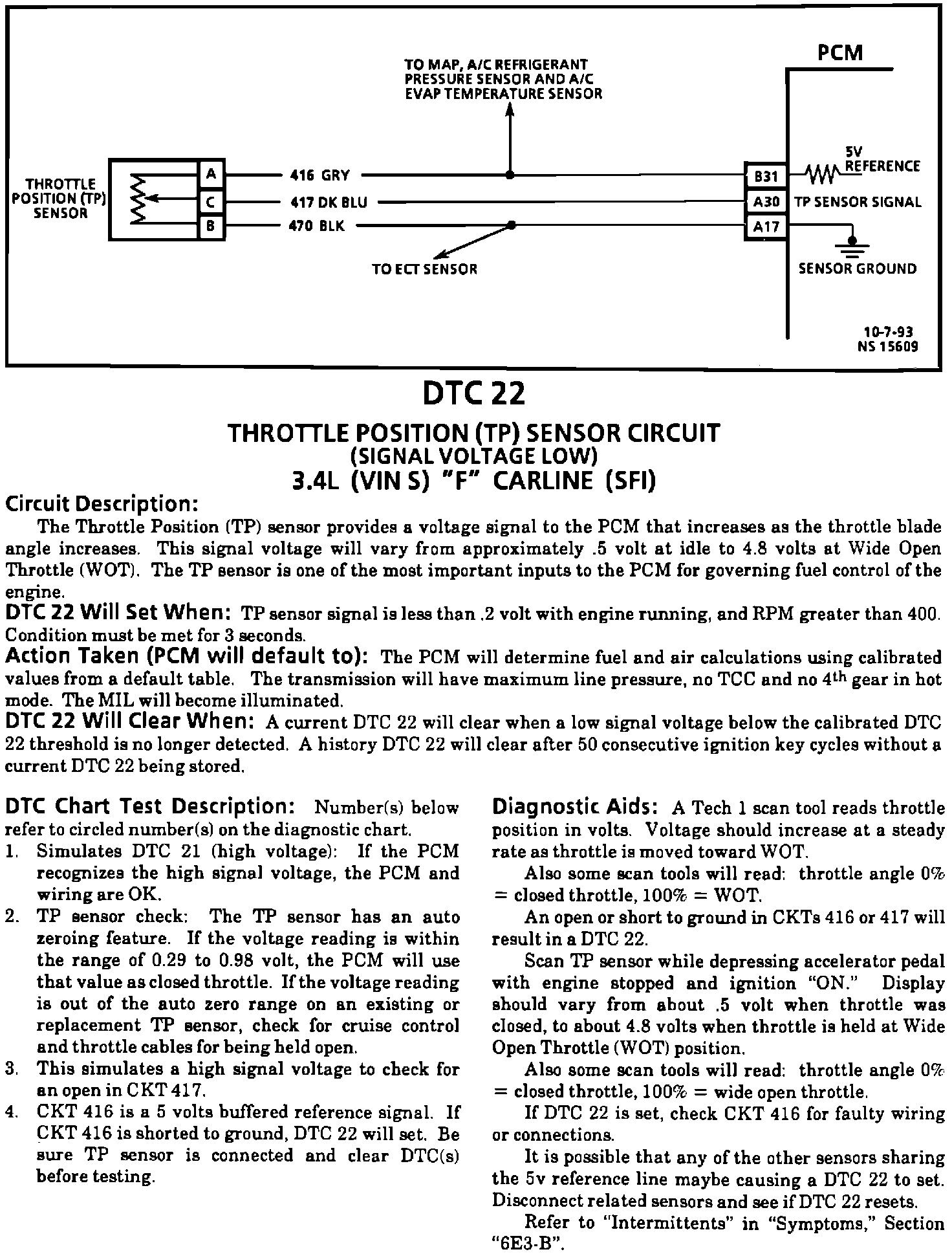

1994 6E Page A-50
