Radio Front Side Door (Tweeter) Speaker Assembly
Removing Radio Front Side Door Speaker Assembly -(Pontiac):

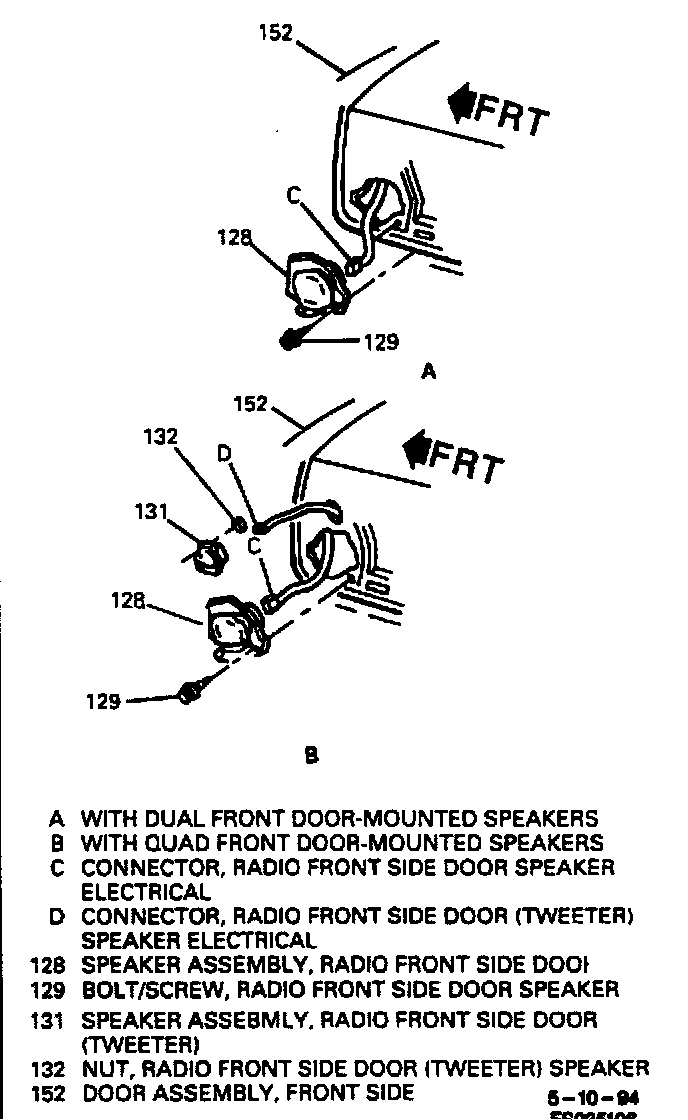

Firebird Shown (Camaro may be similar)REMOVE OR DISCONNECT 1.
Front side door trim assembly.
2.
Nuts(132).
3.
Speaker assembly (131).
INSTALL OR CONNECT 1.
Speaker assembly (131).
2.
Nuts (132).
3.
Front side door trim assembly.
