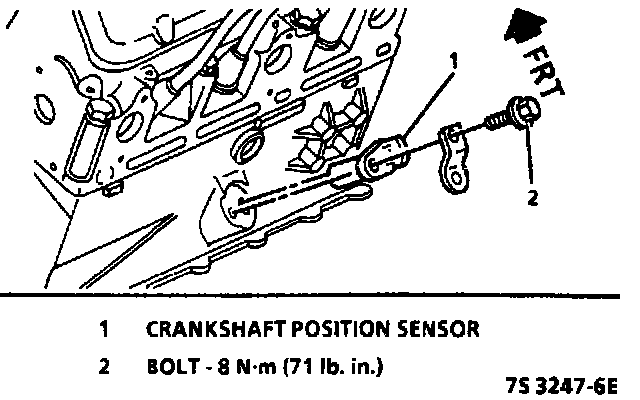

Crankshaft Position Sensor: Service and Repair
Crankshaft Position Sensor:
Remove or Disconnect 1.
Sensor harness connector.
2.
Sensor to block bolt.
3.
Sensor from engine.
Inspect ^
Sensor O-ring for wear, cracks or leakage. Replace if necessary. Lube new O-ring with engine oil before installing.
Install or Connect 1.
Sensor into hole in block.
2.
Sensor to block bolt.
^
Torque to
8 Nm (71 lb in).
3.
Sensor harness connector.
