Fastener Tightening Specifications - Intake Manifold

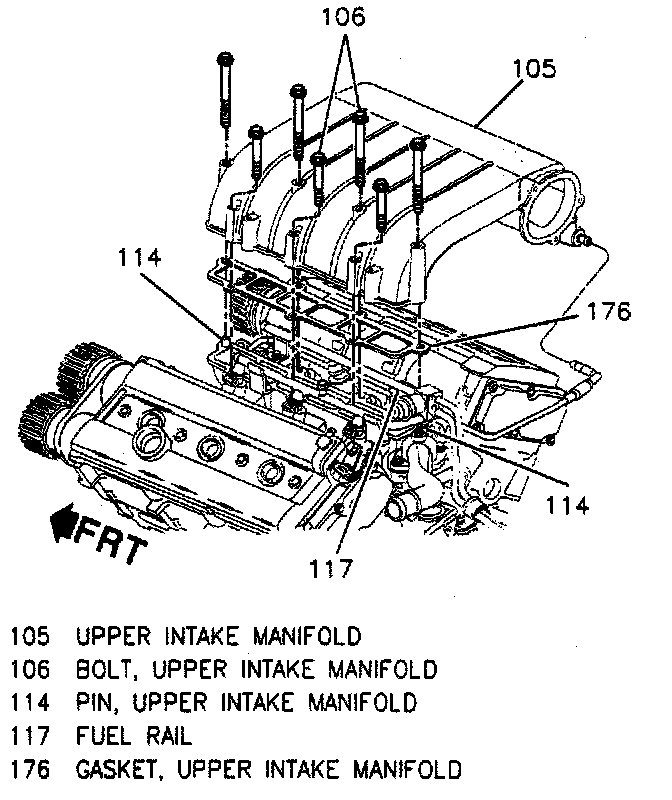

Upper Intake Manifold

Upper Intake Manifold:





Draw manifold in place by tightening bolts gradually.

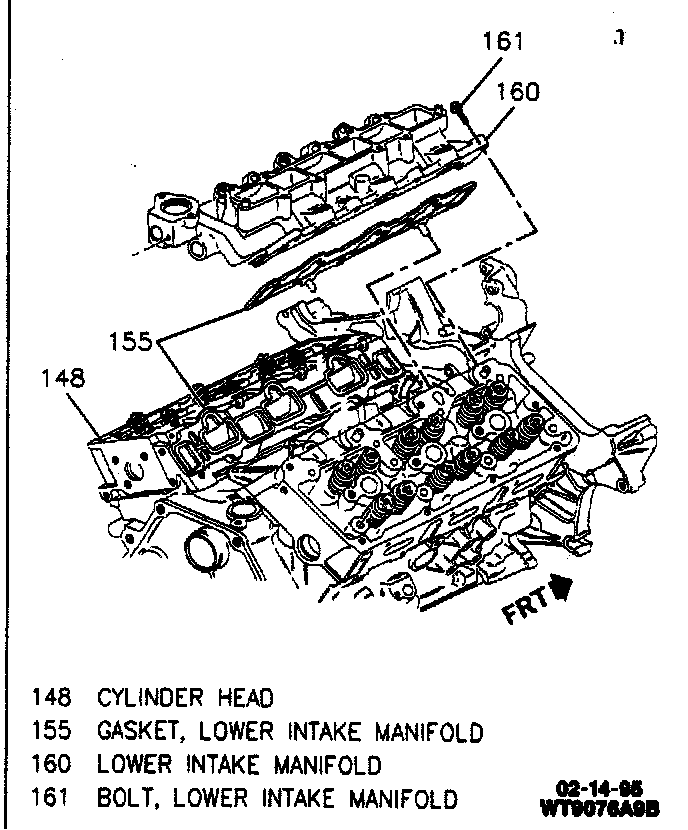

Lower Intake Manifold

Lower Intake Manifold:





Draw lower manifold in place by tightening bolts gradually, starting with the middle bolts and working in a circular pattern. DO NOT tighten one side or one end fully.
