Engine Controls - Revised Schematic
File In Section: 8 - Chassis/Body Electrical
Bulletin No.: 66-82-05
Date: January, 1997
SERVICE MANUAL UPDATE
Subject:

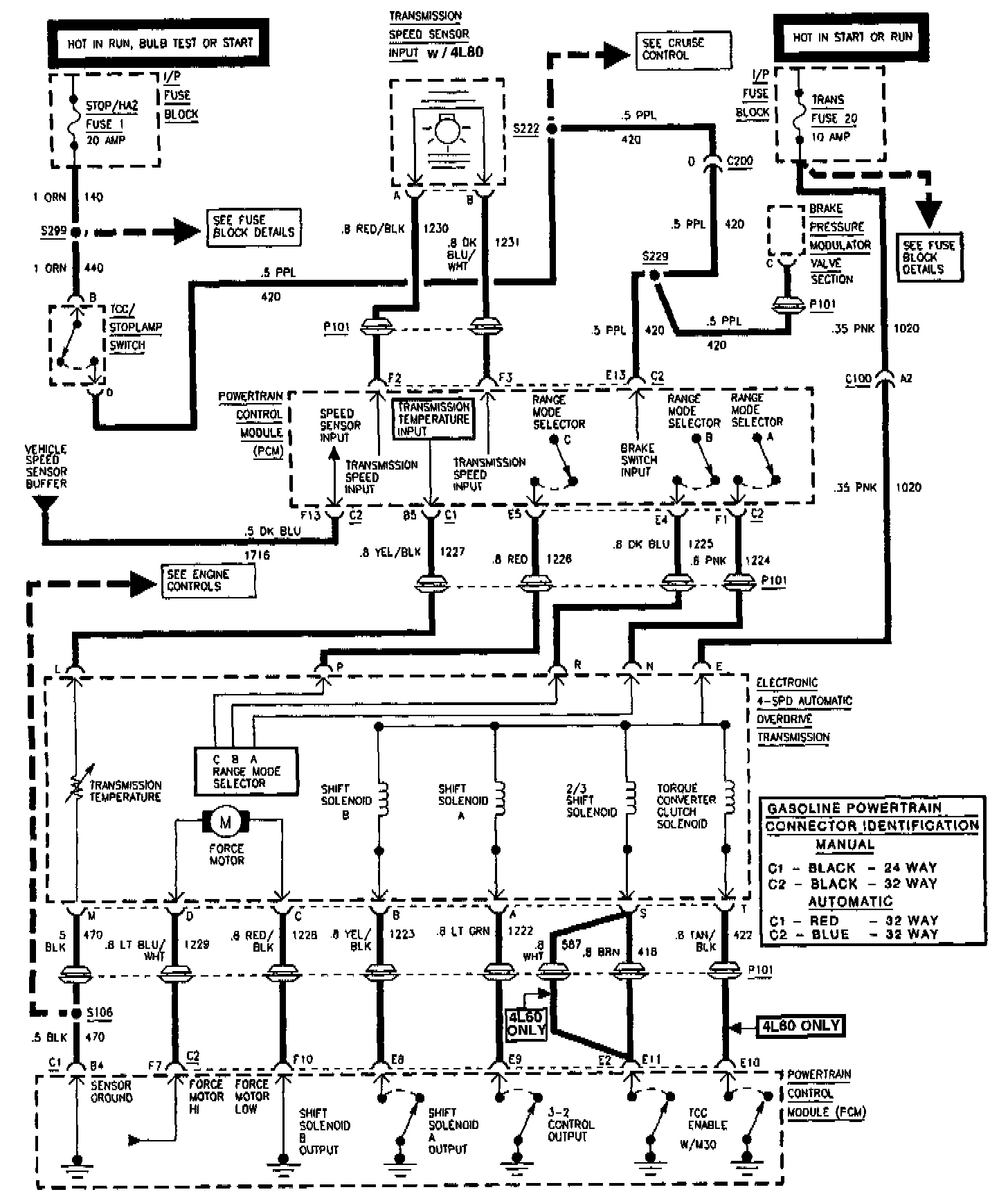

Section 8A-23-6 - Engine Controls - Revised Schematic
Models:
1995 Chevrolet and GMC C/K Models
Updated Image TSB 66-82-05:
This bulletin is being issued to replace the figure on page 8A-23-6 of the 1995 C/K Service Manual.
