Manifold Pressure/Vacuum Sensor: Service and Repair

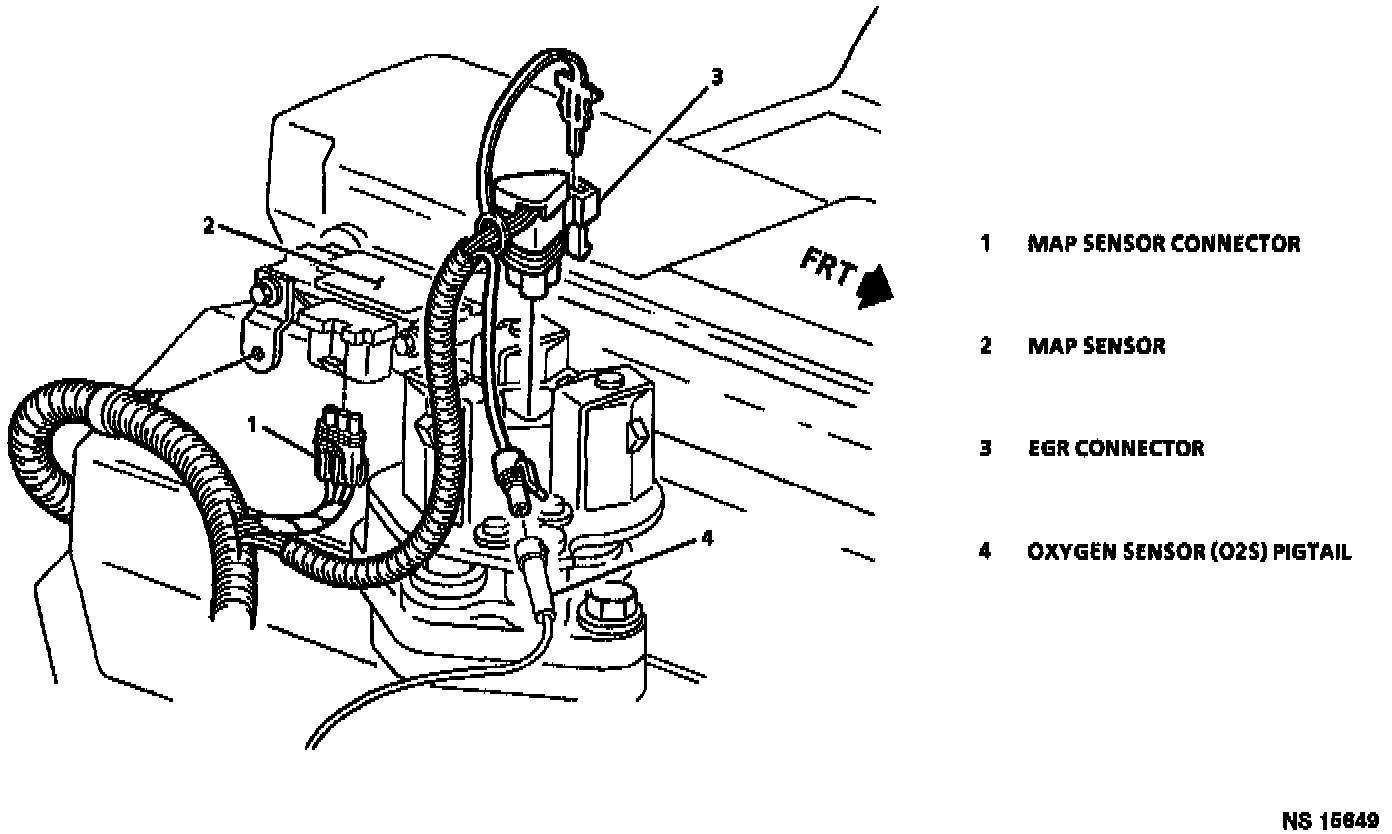

MAP Sensor Location:
REMOVE OR DISCONNECT 1.
Negative battery cable.
2.
Manifold Absolute Pressure
(MAP) sensor electrical connector.
3.
Attaching screws.
4.
Inlet vacuum line.
5.
MAP sensor.
INSTALL OR CONNECT 1.
MAP sensor to intake plenum.
2.
Electrical connector.
3.
Inlet vacuum line.
4.
Negative battery cable.
