Ignition Cable: Service and Repair

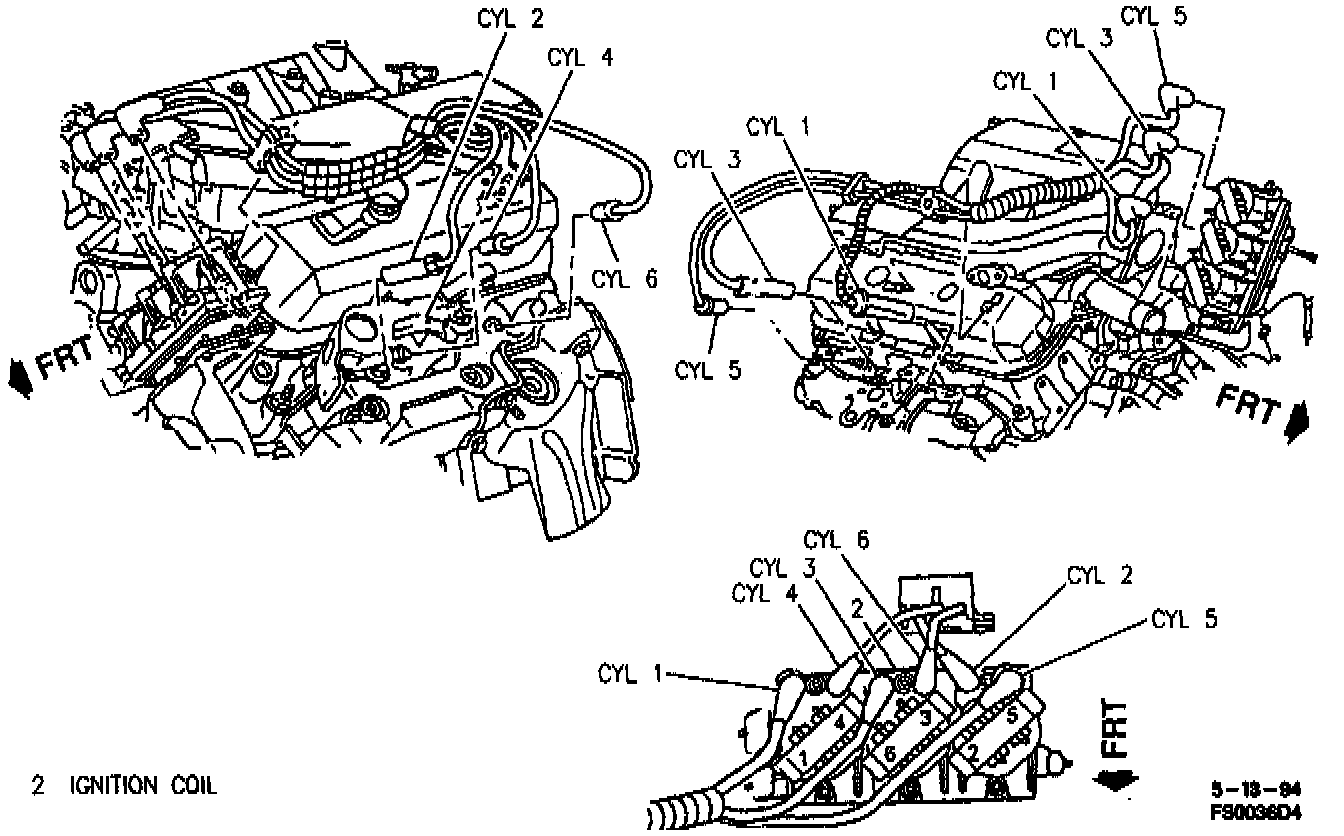

Spark Plug Wire Harness:






NOTE: The boots should be twisted one-half turn while removing. Do not pull on the wires to remove them from the spark plugs. Pull on the boots, or use a tool designed for this purpose.

REMOVE OR DISCONNECT
1. Be sure ignition switch is in "OFF" or "LOCK" position.
2. Accelerator cable cover from accelerator cable bracket.
3. Spark plug wire harness from wire harness clips.
4. Spark plug wire harness from coil.
5. Spark plug wire harness from spark plugs.
- Note position of wires before removing.

INSTALL OR CONNECT
1. Spark plug wire harness to spark plugs.
2. Spark plug wire harness to coil.
3. Spark plug wire harness to wire harness clips.
4. Accelerator cable cover to accelerator cable bracket.
