Pinout Description

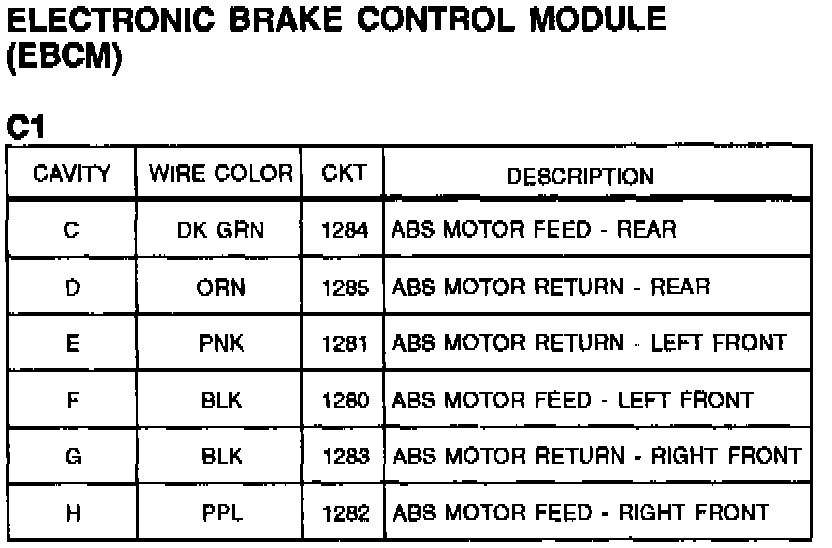

Electronic Brake Control Module (EBCM): C1:

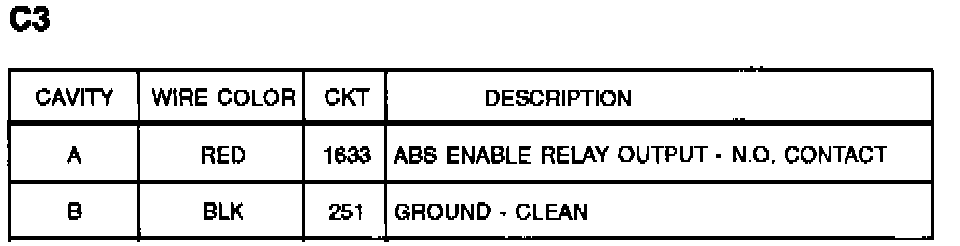

Electronic Brake Control Module: C3:
With Enhanced Traction

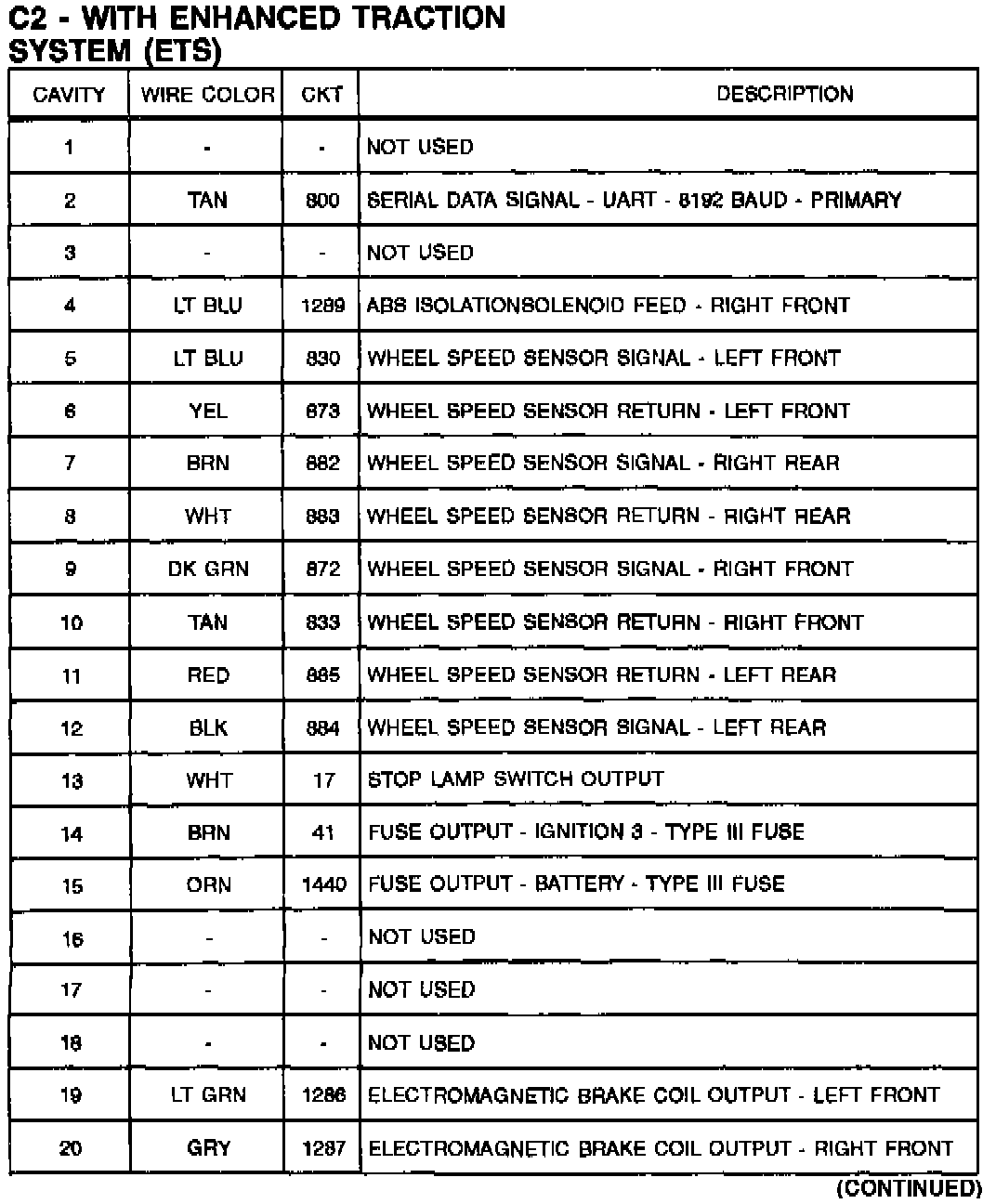

Electronic Brake Control Module (EBCM): C2 (With Enhanced Traction System (Part 1 Of 2):

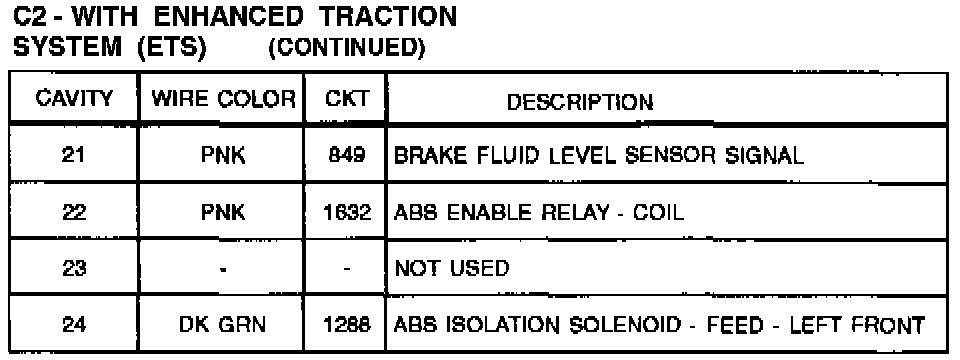

Electronic Brake Control Module (EBCM): C2 (With Enhanced Traction System (Part 2 Of 2):
Without Enhanced Traction

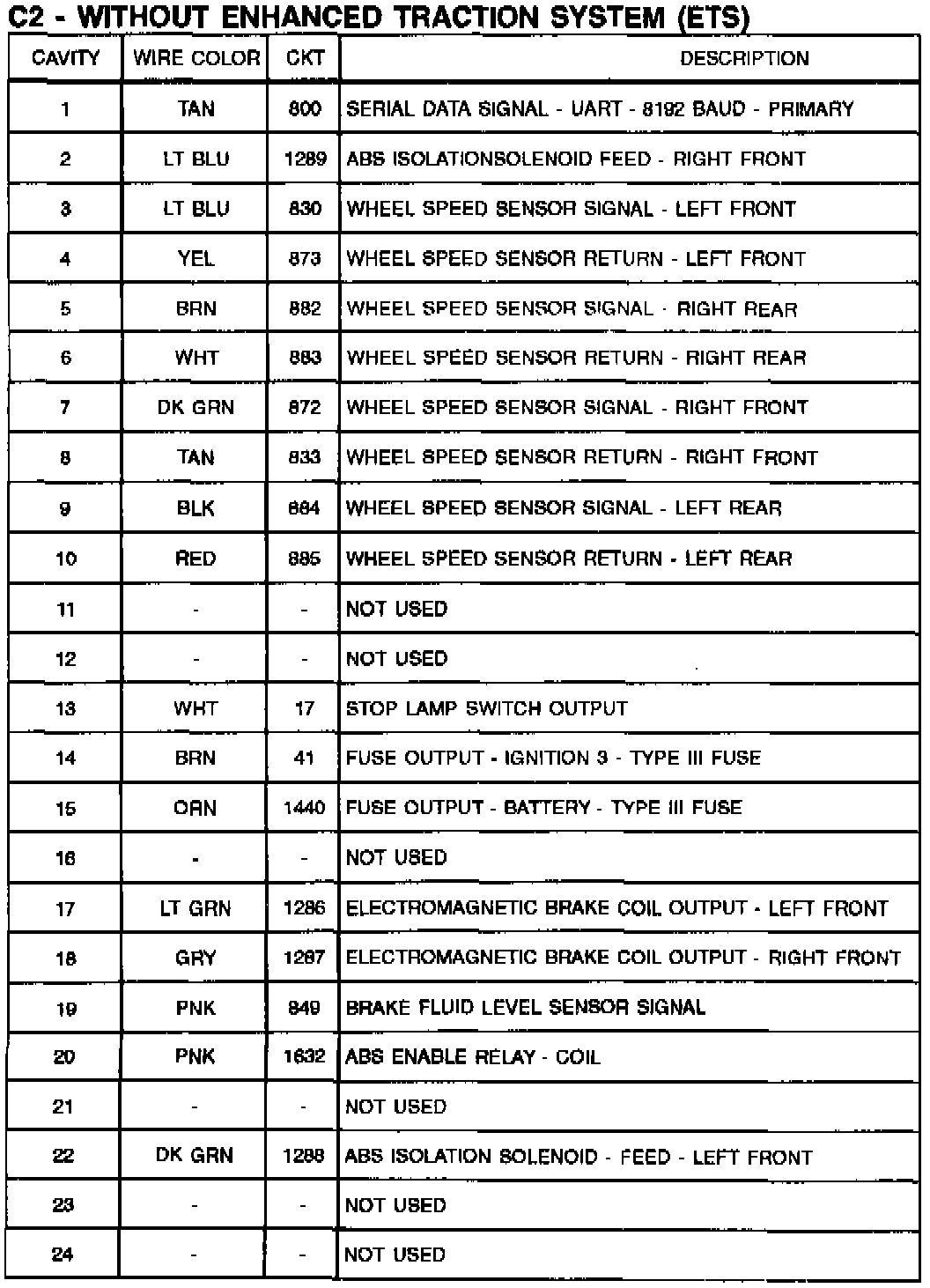

Electronic Brake Control Module: C2 (Without Enhanced Traction System:
