EGR Control Solenoid: Service and Repair

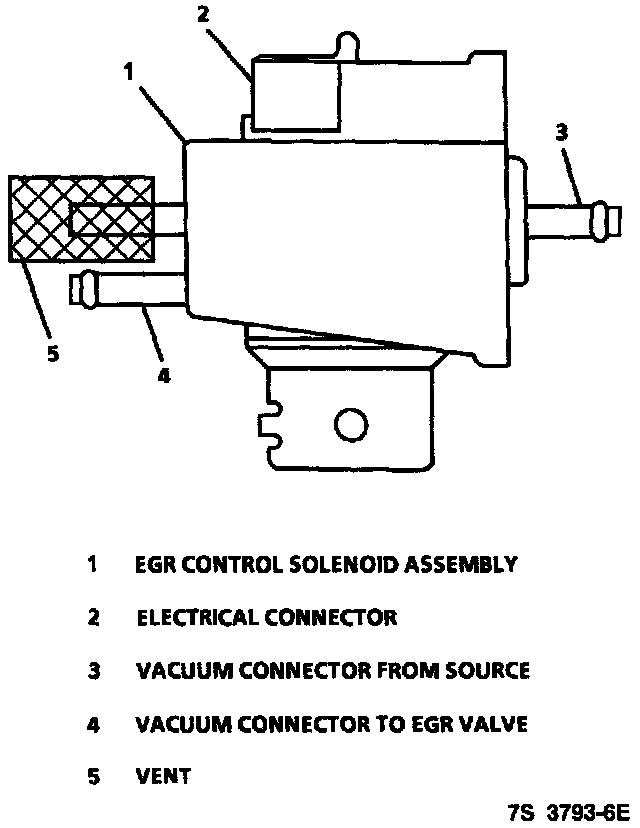

EGR Control Solenoid:

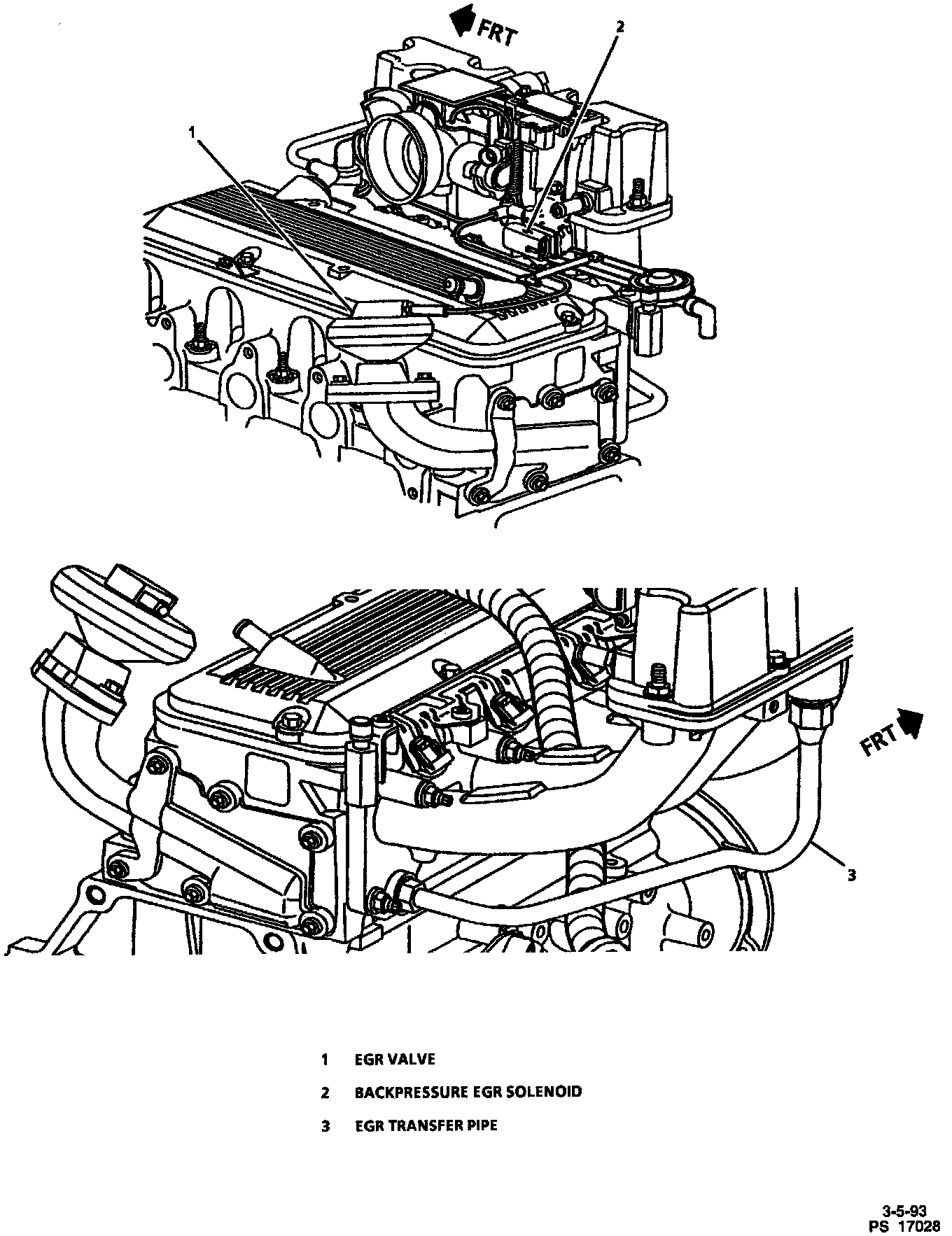

Backpressure And EGR System:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Electrical connector at solenoid.
3. Vacuum hoses.
4. Bolt(s) and solenoid.

INSTALL OR CONNECT
1. Solenoid.
2. Vacuum hoses.
3. Electrical connector.
4. Negative battery cable.
