Engine Front Cover Removal

1. Remove the crankshaft position sensor bolt.
2. Remove the crankshaft position sensor.

3. Remove the crankshaft position sensor seal (0-ring).
4. Discard the crankshaft position sensor seal (0-ring).

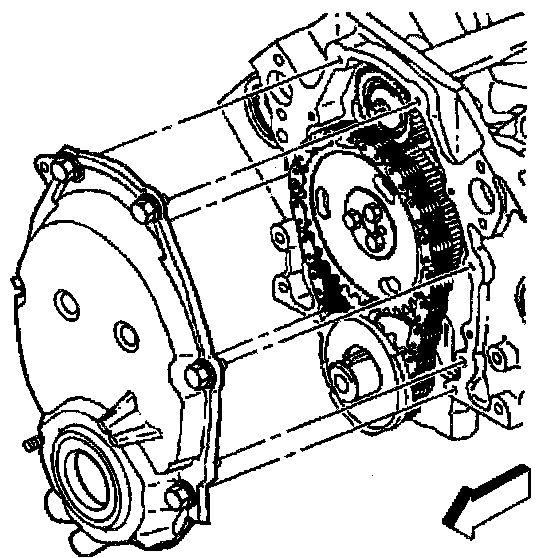

5. Remove the engine front cover bolts.
6. Remove the engine front cover.

IMPORTANT: After the composite engine front cover is removed do not reinstall the engine front cover. Always install a NEW engine front cover.

7. Discard the engine front cover.
