Installation

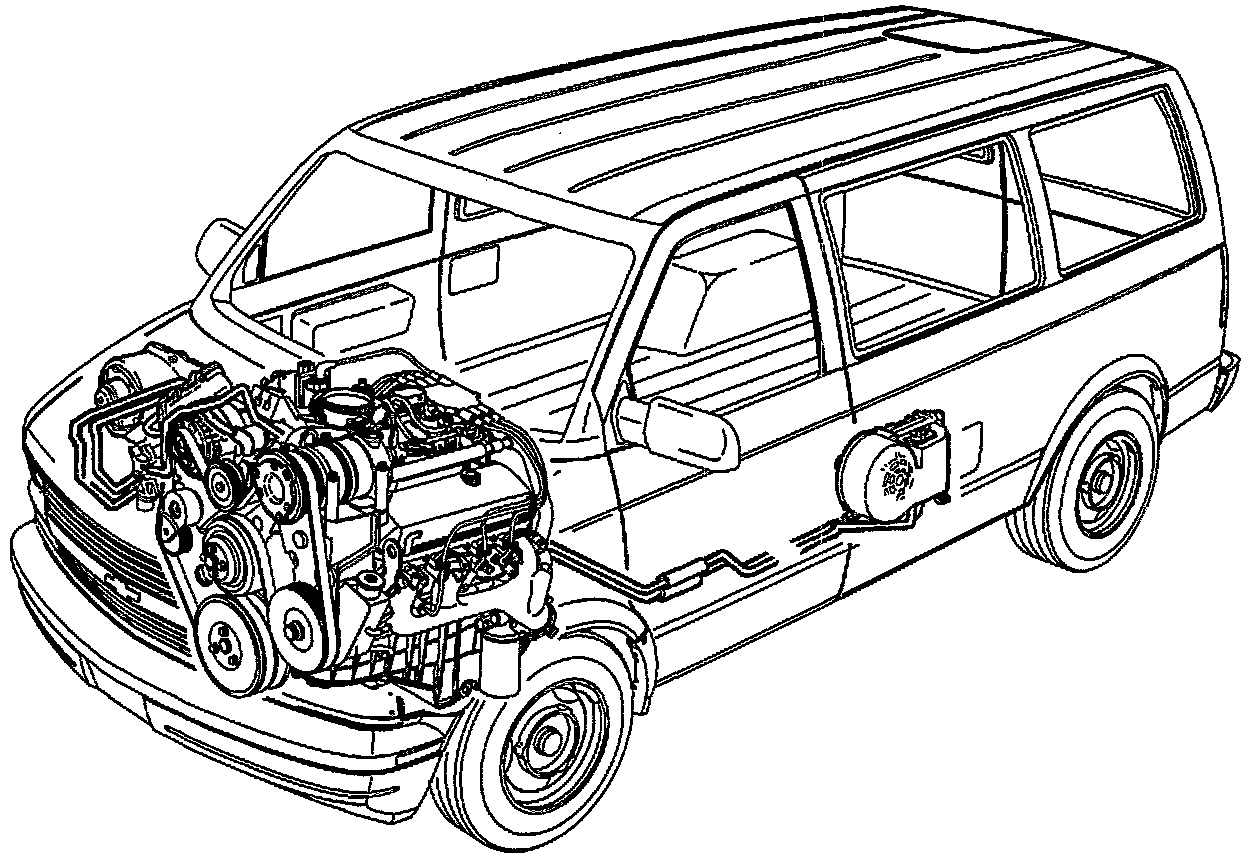

Rear Heater Component View:
INSTALL OR CONNECT 1.
Seals to the
heater core.
2.
Heater core into the case.
3.
One screw and band clamp to the left side of the core.
4.
Two screws and band clamp to the right side of the core.
5.
Auxiliary heater pipes from the
heater core inlet and outlet tubes.
6.
Clamps to the auxiliary heater pipes.
7.
Body side front lower trim panel.
8.
Engine coolant.
9.
Negative battery cable.
