System Check

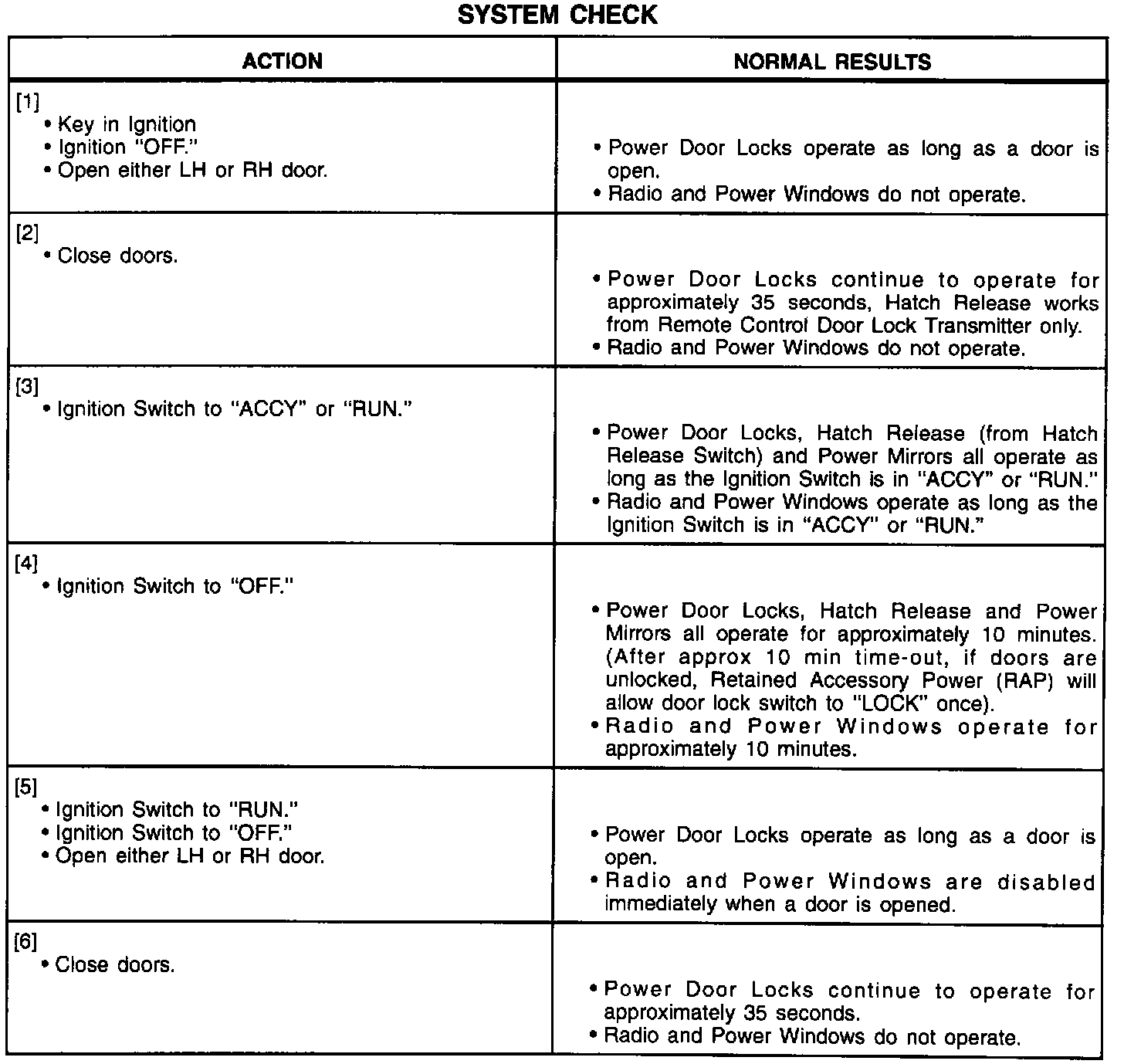

System Check:




^ If aftermarket equipment is installed on any circuit(s) for the Retained Accessory Power (RAP) System and a problem exists with the Retained Accessory Power System operation, disconnect the aftermarket equipment and retest.
^ These diagnostic procedures assume related fuse(s) or circuit breaker(s) and the circuitry to their related components are all good.
