Remove or Disconnect

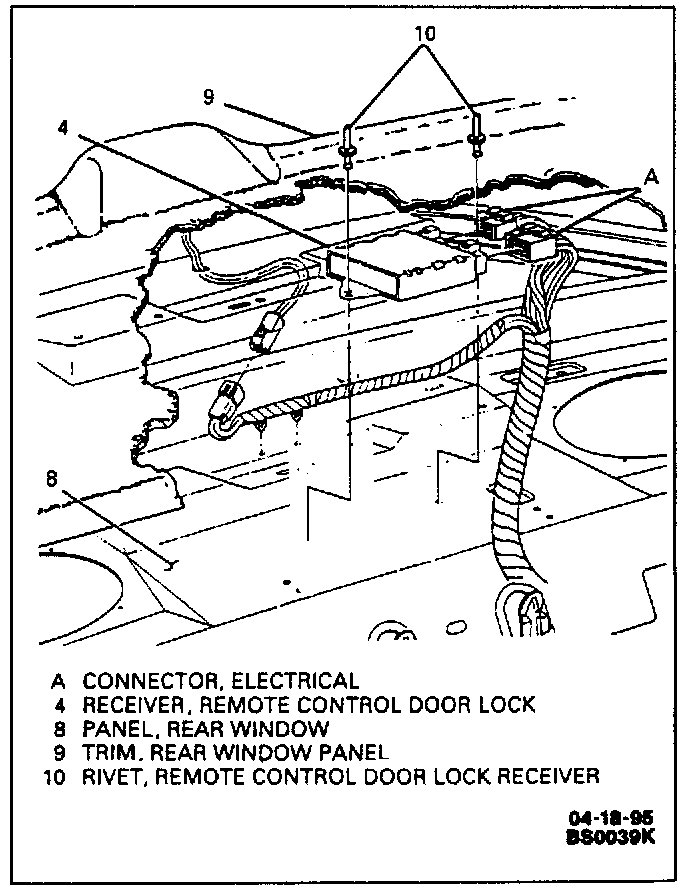

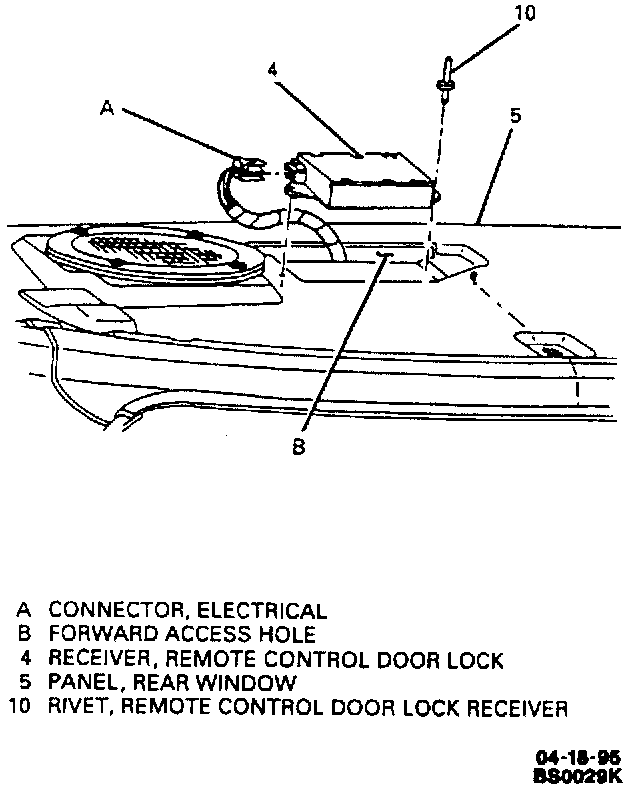

For Chevrolet, access receiver (4) from underneath rear window panel through rear compartment using forward access hole.
For Buick, rear window panel trim must be removed to access receiver (4).
1.
Rivets (10) attaching receiver (4) to rear window panel.
2.
Electrical connectors from receiver (4).
3.
Receiver (4).
