Instrument Panel Assembly Replacement

INSTRUMENT PANEL ASSEMBLY

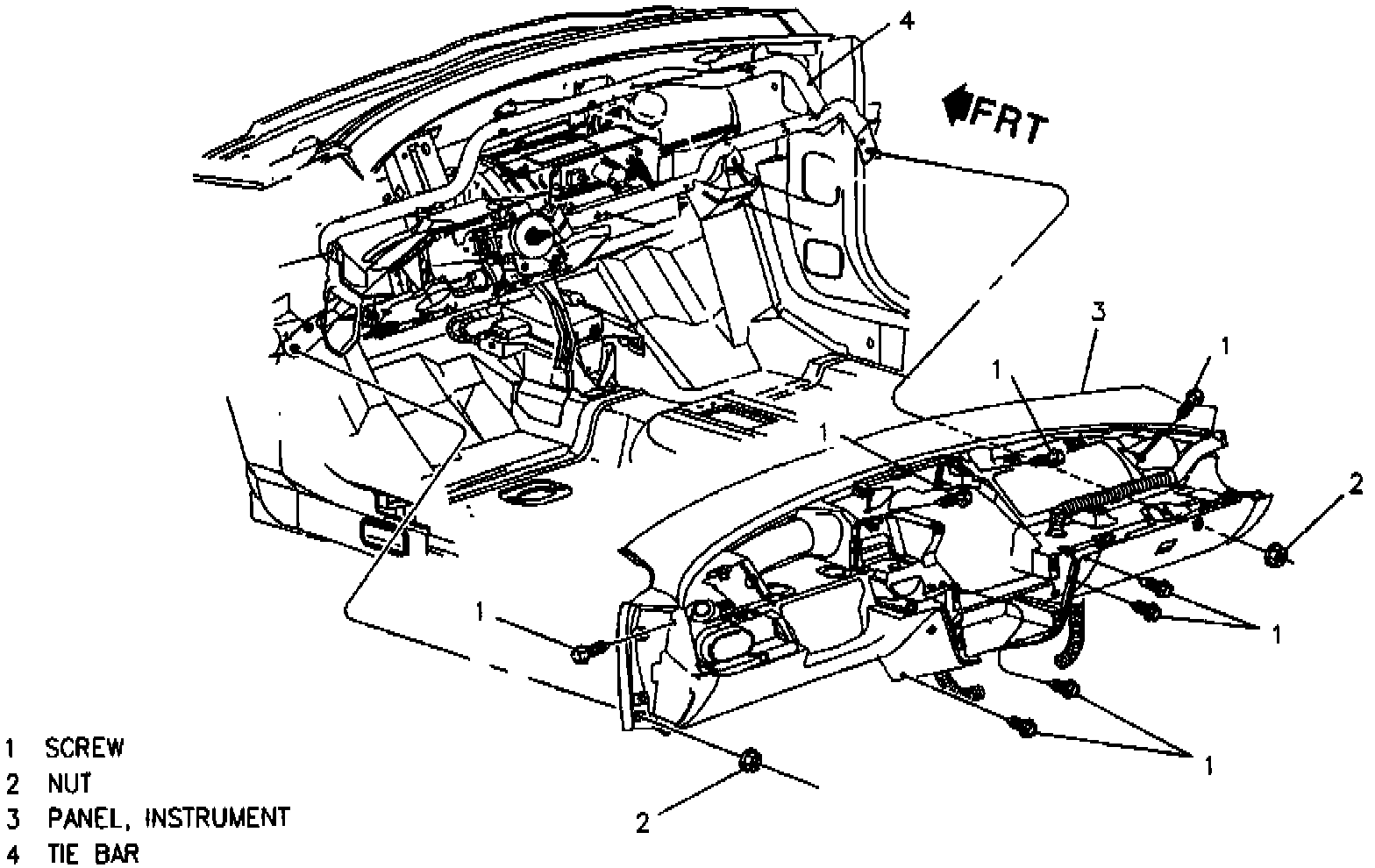

Fig. 39 Instrument Panel Replacement:

I/P Air Distribution Duct:

I/P Left Air Distribution Duct:

I/P Left And Right Defogger Ducts:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Disable SIR system. Service and Repair
3. Defroster grille.
4. End caps.
5. I/P trim pad.
6. Instrument cluster trim plate.
7. HVAC control. Service and Repair
8. Radio. Service and Repair
9. Air distribution ducts.
10. I/P compartment lamp electrical connector.
11. Screws to tie bar.
12. Panel from tie bar.

INSTALL OR CONNECT
1. Panel to tie bar.
2. Screws to tie bar.
3. I/P compartment lamp electrical connector.
4. Air distribution ducts.
5. Radio.
6. HVAC control.
7. Instrument cluster trim plate.
8. I/P trim pad.
9. End caps.
10. Defroster grille.
11 Enable SIR system.
