Purge Flow Sensor: Service and Repair
Evaporative Canister Vent Valve:
REMOVAL PROCEDURE 1.

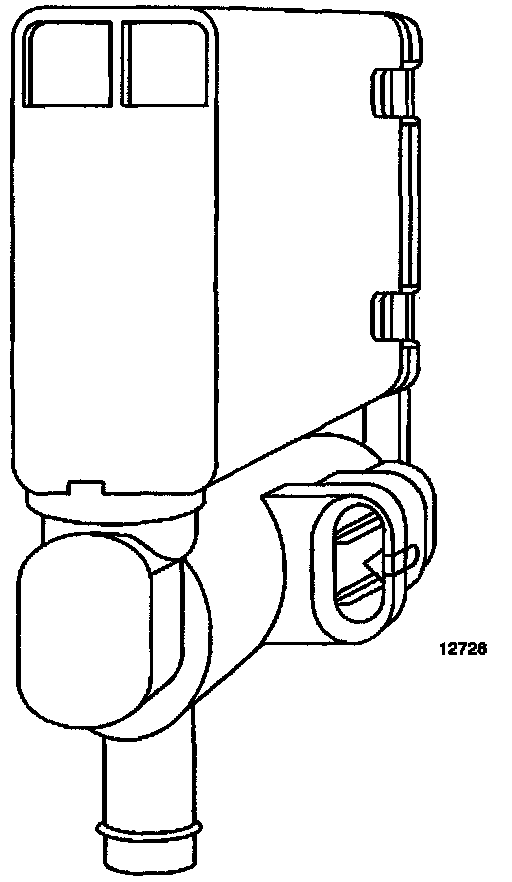

Disconnect the EVAP purge vacuum switch electrical connector.
2.
Remove the hoses from the EVAP purge vacuum switch.
INSTALLATION PROCEDURE 1.
Lubricate the hose ends with lubricant PIN 9985406.
2.
Install the hoses to the EVAP purge vacuum switch.
3.
Connect the EVAP purge vacuum switch electrical connector.
