EGR Valve: Service and Repair

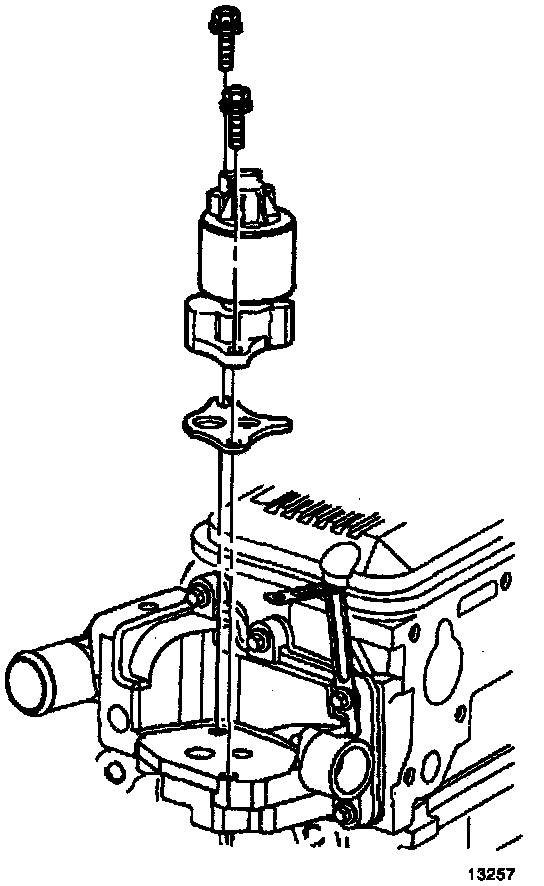

EGR VALVE:






REMOVAL PROCEDURE
1. Remove the Air Cleaner Outlet Resonator.
2. Disconnect the electrical connector to the EGR valve.
3. Remove the EGR valve bolts.
4. Remove the EGR valve.

INSTALLATION PROCEDURE
Be sure all gasket material is removed from the EGR mounting surface. Even a small amount of material may cause a DTC P0401 to set.

1. Install the EGR valve with the gasket.
2. Install the EGR valve bolts.

Tighten
Bolts to 22-30 Nm (16-22 lb ft).

3. Connect the EGR valve electrical connector.
4. Install the Air Cleaner Outlet Resonator.
