Fuel Pressure: Specifications

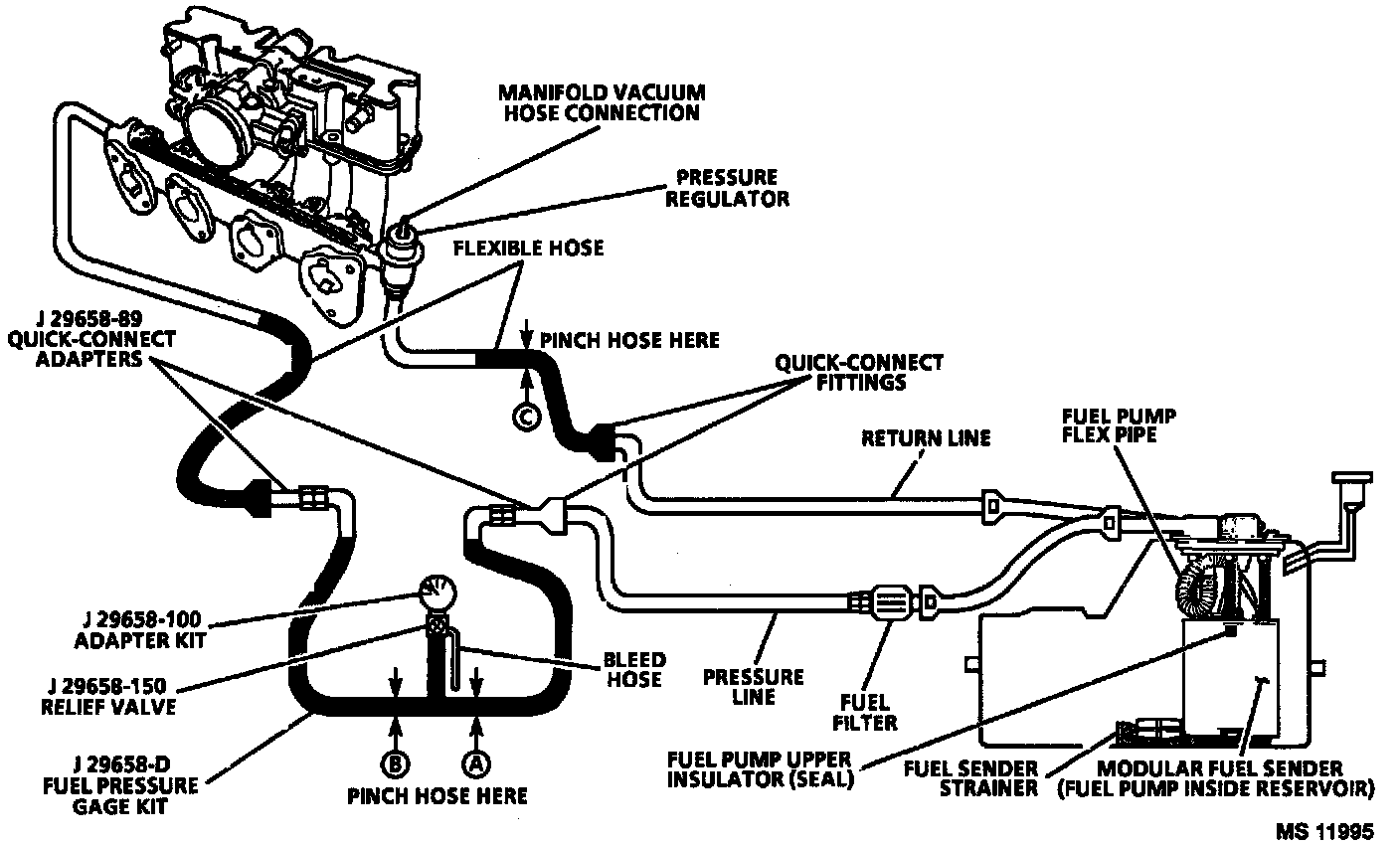

Fuel System Diagnosis (Part 1 Of 3):






When the ignition switch is ON (Engine off) and the fuel pump is running, the fuel pressure indicated by the fuel pressure gage should be 284-325 kPa (41-47 psi).
