On-Vehicle Service

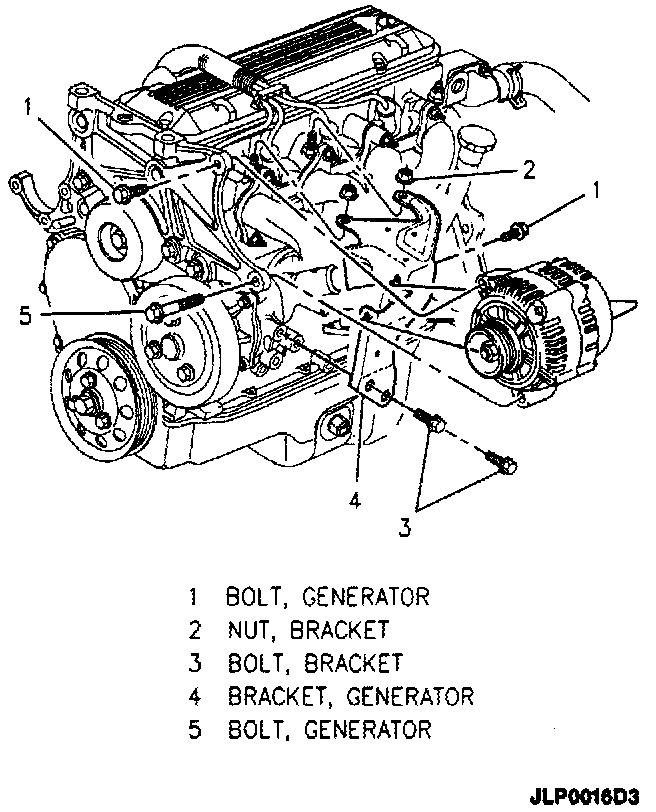

Generator Mounting:
REMOVE OR DISCONNECT 1.
Negative
battery cable at battery.
2.
Generator electrical connections.
3.
Generator drive belt.
4.
Through bolts which retain generator
5.
Generator.
INSTALL OR CONNECT 1.
Generator to mounting bracket with bolts, washers and nuts.
2.
Generator drive belt.
3.
Generator electrical connections.
4.
Negative
battery cable at battery.
