Neutral Safety Switch: Adjustments

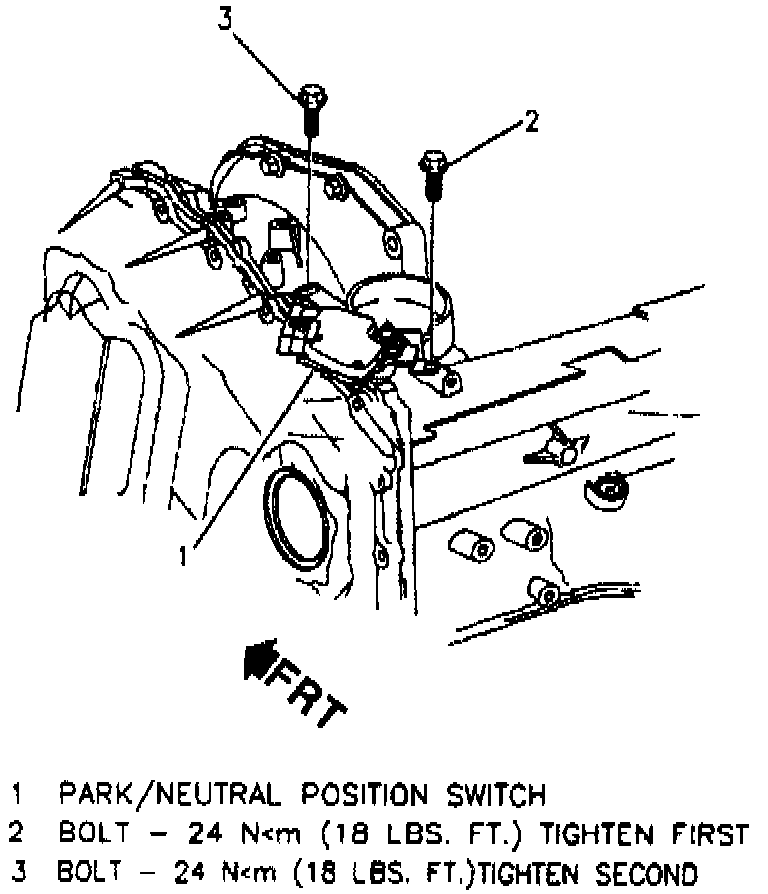

Fig.8 Neutral Safety Switch Position:
1.
Place transaxle control shifter assembly in neutral notch of detent plate.
2.
Loosen switch attaching bolts,
Fig. 8.
3.
Rotate switch on shifter assembly to align service adjustment hole with carrier tang hole.
4.
Insert a 3/32 maximum diameter gauge pin to a depth of 9/64 inch.
5.
Tighten bolts to specifications.
6.
Remove gauge pin.
