A/T - Unit Repair/Sprag Clutch Rotation

File In Section:7 - Transmission

Bulletin No.:77-71-78

Date: December, 1997

SERVICE MANUAL UPDATE

Subject:
Section 7A-Automatic Transaxle Unit Repair Manual (TURM) - Changing the Direction of the Sprag Clutch Rotation Checking Procedure from Counterclockwise to Clockwise

Models:
1996 Chevrolet Cavalier
1996 Pontiac Sunfire
with HYDRA-MATIC 4T40-E Transaxle (RPO MN4) and with 2.2L, 2.4L Engine (VINs 4, T - RPOs LN2, LD9)

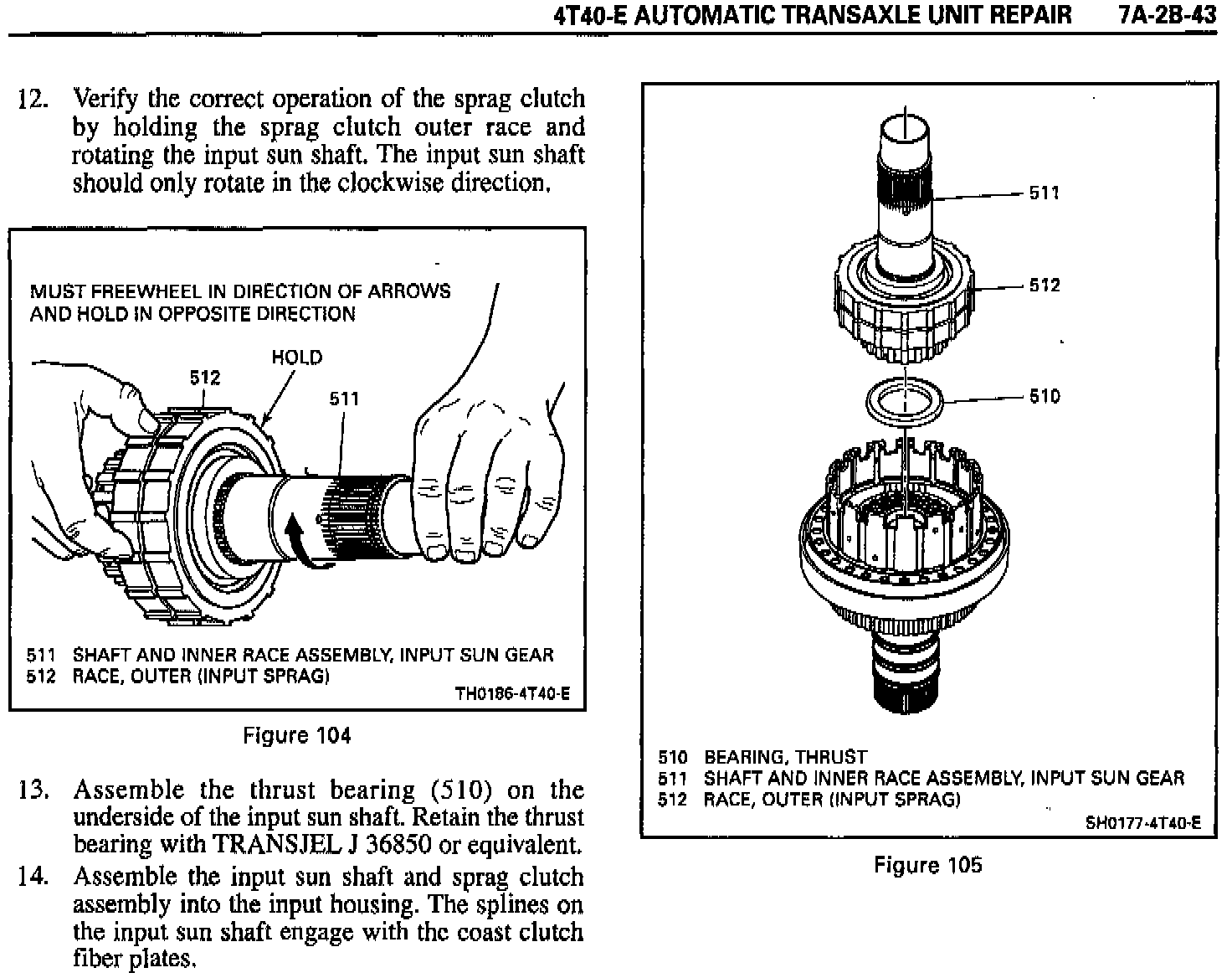

Included is an updated page of the 1996 Automatic Transaxle Unit Repair Manual Section 7A-2B-43. This page has revisions to the direction of the sprag clutch rotation checking procedure from counterclockwise to clockwise. (Figure 104)

Replace this page in your 1996 TURM manual.
