Shift Cable: Adjustments

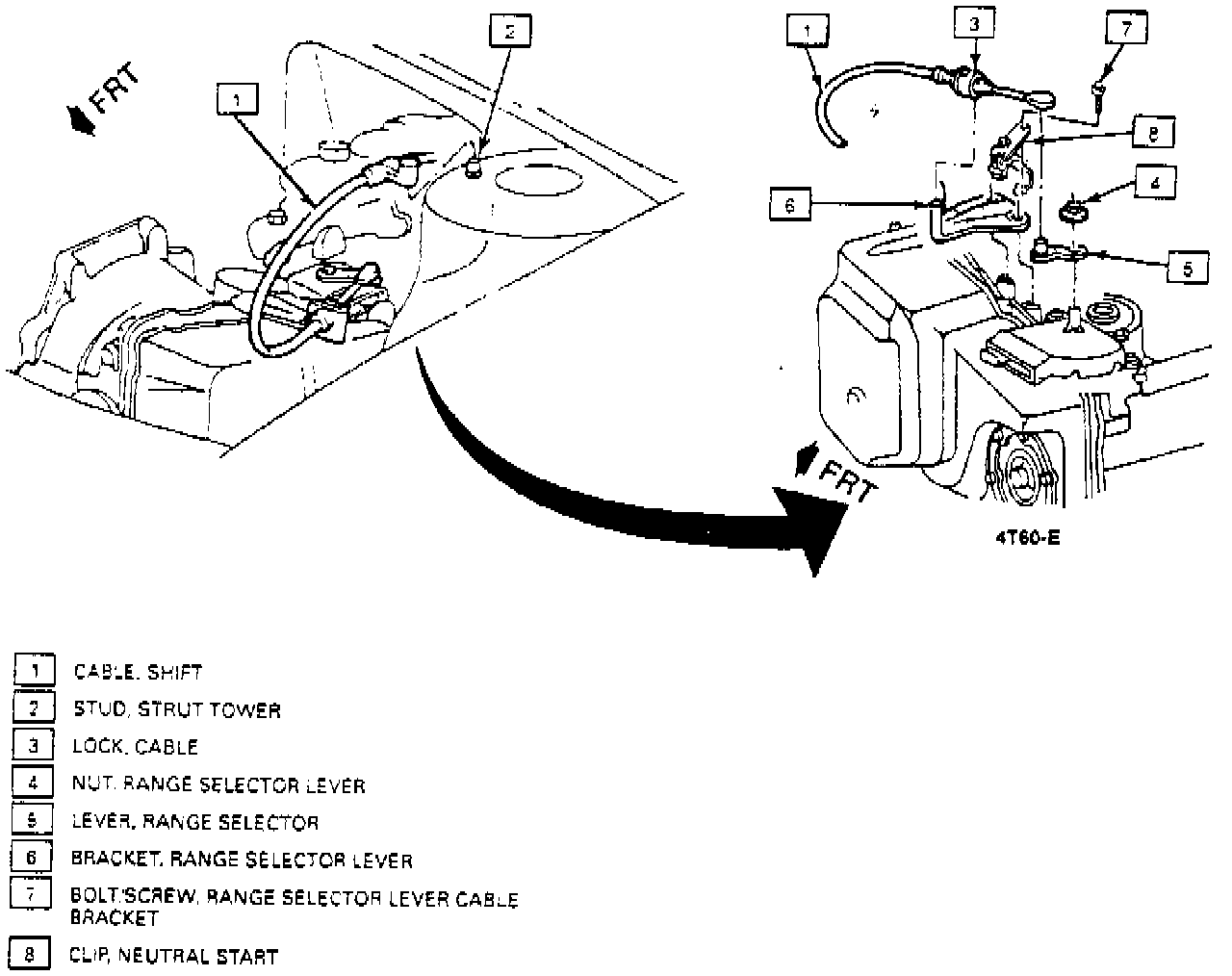

Fig.5 Shift Control Cable Adjustment:

1. Apply parking brake and block wheels.
2. Position range selector into the NEUTRAL position.
3. Lift up range selector cable locking button.
4. Remove range selector cable end from transaxle range selector level.
5. Position range selector lever into LOW position.
6. Position transaxle range selector lever into LOW position. Obtain LOW position by rotating transaxle range selector lever toward front of vehicle until it stops.
7. Snap range selector cable end onto transaxle range selector lever.
8. Press range selector cable locking button down into the locked position.
9. Position range selector lever into PARK position.
10. Remove wheel blocks and release parking brake.
