Wiper Motor Cover Replacement

Figure 10:

Figure 11:

Figure 16:

Remove or Disconnect
1. Wiper arm assemblies from vehicle.
2. Four screws (15). five retainers (16). and screen assembly (17) from vehicle.
3. Connector (18) from wiper motor assembly (19).
4. Three screws (20) and wiper drive system module (21) from vehicle.

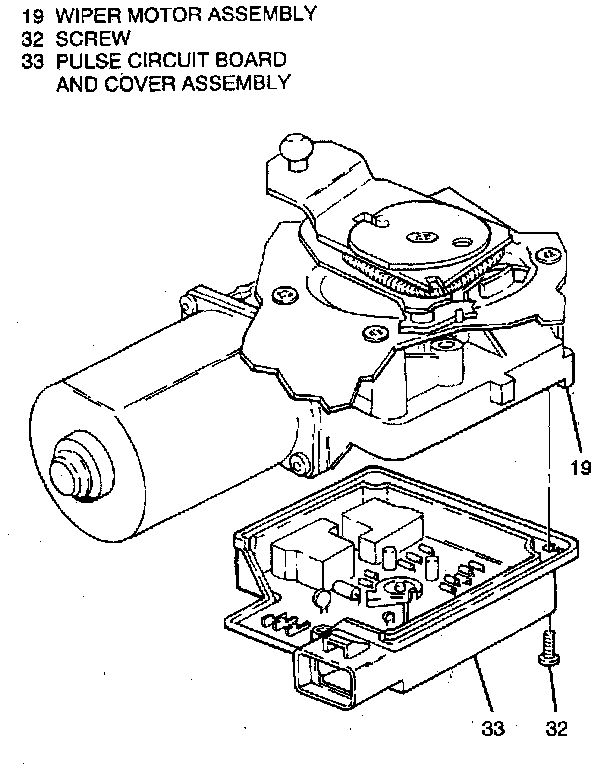

5. Three screws (32) and pulse circuit board and cover assembly (33) from wiper motor assembly (19)

Install or Connect

NOTICE: Refer to Fastener Notice.

1. Pulse circuit board and cover assembly (33) on wiper motor assembly (19) with three screws (32).

Tighten
^ Screws to 2 N.m (18 lb. in.).
2. Wiper drive system module (21) on vehicle with three screws (20).

Tighten
^ Screws to 10 N.m (88 lb. in.).
3. Connector (18) to wiper motor assembly (19).
4. Screen assembly (17) on vehicle with four screws (15) and five retainers (16).
5. Wiper arm assemblies on vehicle.
6. Operate wipers and check for proper operation.
