Torque Specifications

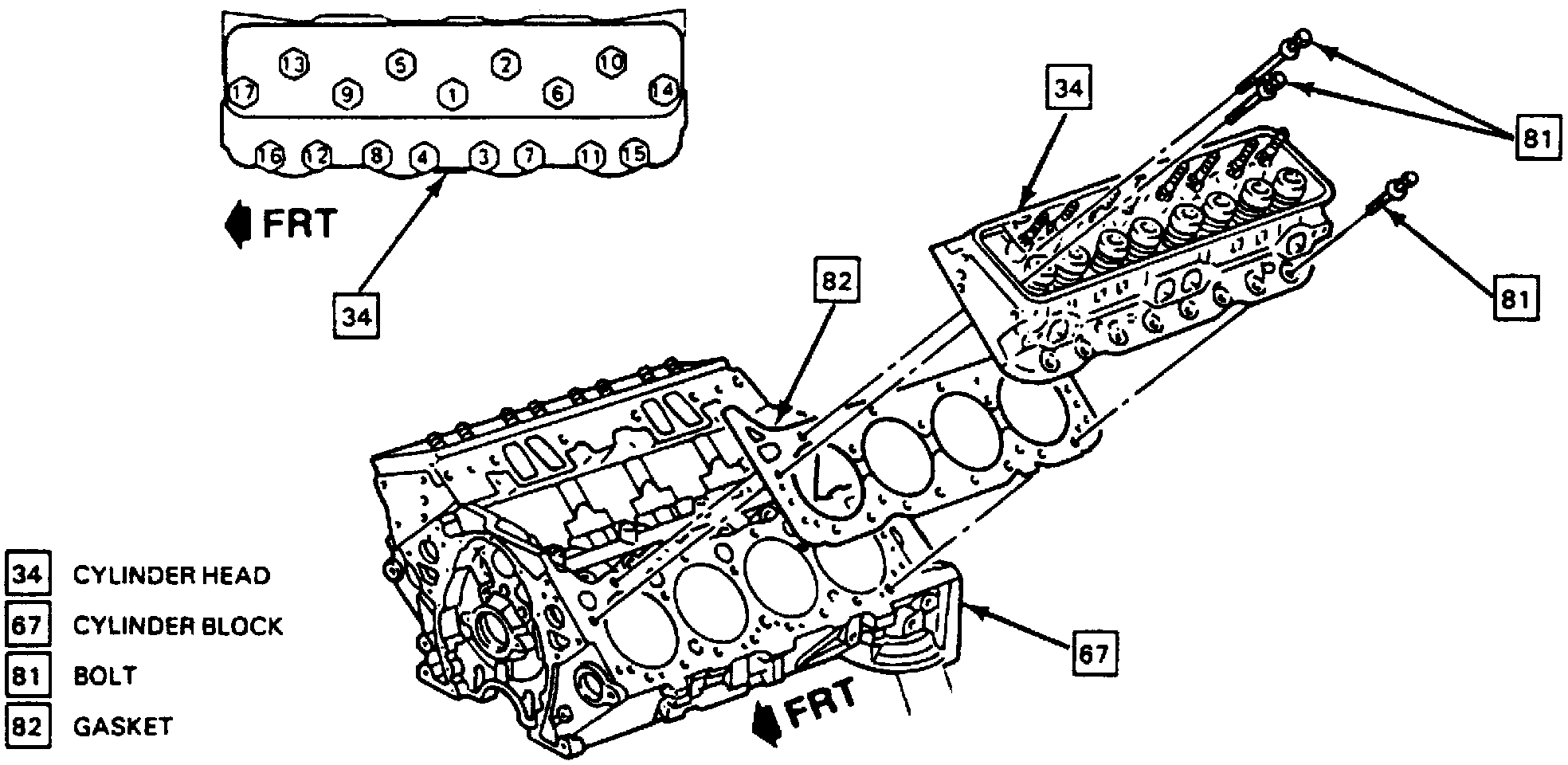

Cylinder Head BoltsFig. 6 Cylinder Head Bolt Tightening Sequence:
In the sequence shown (refer to figure 6):
^
Torque all bolts to
22 ft. lbs. ^
Tighten all short bolts an additional
[1] 67° ^
Tighten all medium & long bolts an additional
[2] 80° [1] Short bolts include:
Nos. 3, 4, 7, 8, 11, 12, 15, 16.
[2] Medium & Long bolts include:
Nos. 1, 2, 5, 6, 9, 10, 13, 14, 17.
