Knock Sensor Module: Service and Repair

Removing Knock Sensor Module From PCM:

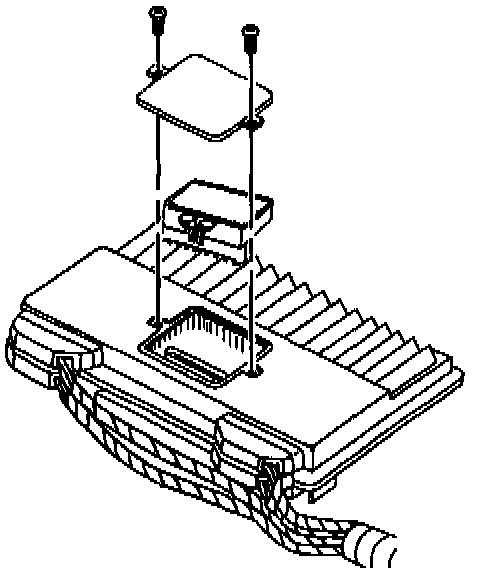

Knock Sensor Module Inside Of PCM:






Knock Sensor Module

Removal Procedure

Caution: To prevent possible electrostatic discharge damage to the PCM and Knock Sensor (KS) module, Do Not touch the connector pins or soldered components on the circuit board.

1. Remove the PCM from the mounting bracket. Refer to Powertrain Control Module / Service and Repair / PCM Replacement/Programming.

2. Remove the knock sensor module access cover.

Notice: To prevent possible electrostatic discharge damage to the PCM, do not touch the connector pins or soldered components on the circuit board.

3. Remove the knock sensor module.

Installation Procedure

1. Install the knock sensor module.

2. Install the access cover.

3. Install the PCM to the mounting bracket.
