Oil Pressure Sensor: Service and Repair

Fuel Pump Switch/Engine Oil Pressure Sensor:

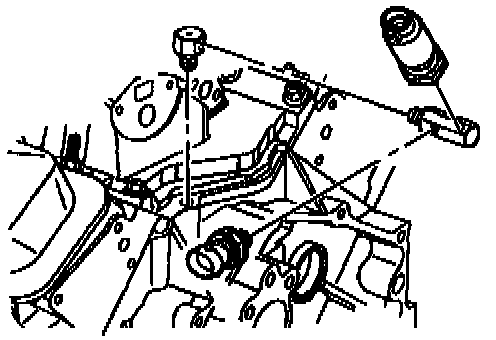

Fuel Pump Switch and Engine Oil Pressure Sensor

Removal Procedure

1. Disconnect the Secondary Air Injection (AIR) hose at the AIR check valve.

2. Disconnect the electrical connector from the fuel pump switch and engine oil pressure sensor.

3. Remove the fuel pump switch and engine oil pressure sensor.

Installation Procedure

1. Install the fuel pump switch and engine oil pressure sensor. Tighten the fuel pump switch and engine oil pressure sensor to 12 Nm (106 lb. in.).

2. Connect the electrical connector to the fuel pump switch and engine oil pressure sensor.

3. Connect the AIR hose to the AIR check valve.
