Vehicle Speed Sensor: Service and Repair

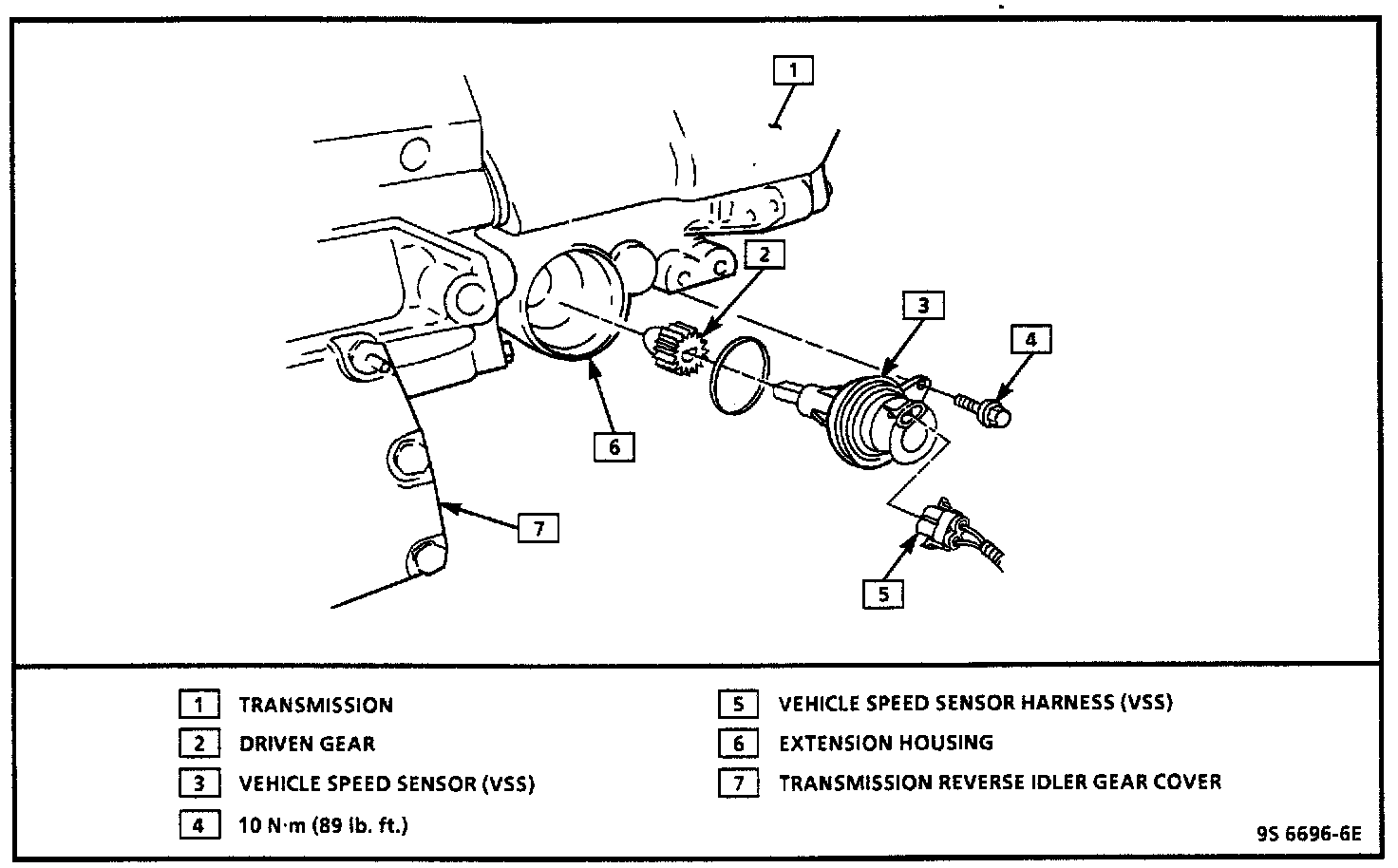

Vehicle Speed Sensor Installation:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Raise vehicle.
3. Electrical connector from sensor.
4. Retainer bolt.
5. Sensor, O-ring, and speed sensor gear from transmission.

INSTALL OR CONNECT
1. O-ring on sensor. Coat with transmission fluid before installing.
2. Speed sensor gear on sensor.
3. Sensor and gear assembly into transmission. Make sure sensor is fully seated.
4. Retainer and retainer bolt. Tighten bolt to 10 Nm (89 lb. in.).
5. Electrical connector
6. Lower vehicle.
7. Negative battery cable.
