Torque Specifications

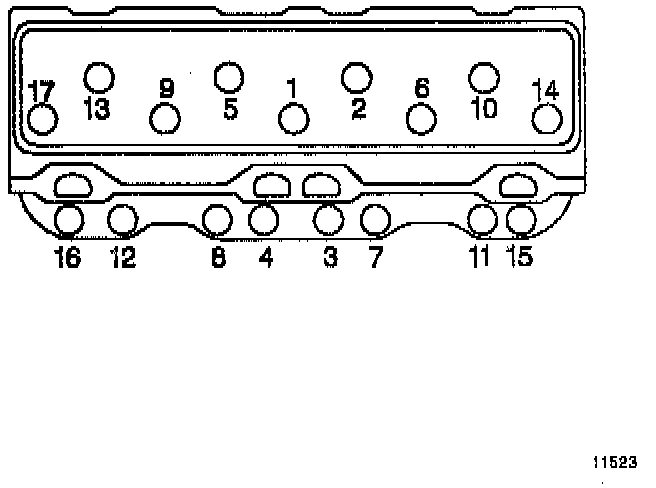

Cylinder Head BoltsCylinder Head Bolt Tightening Sequence:
Tighten the
cylinder head bolts in sequence on the first pass to
30 Nm (22 lb ft).Use the J 36660 in order to tighten the
cylinder head bolts on the second pass.
^
Torque short bolts (3, 4, 7, 8, 11, 12, 15, 16) to
67° ^
Torque medium bolts (14, 17) to
80° ^
Torque long bolts (1, 2, 5, 6, 9, 10, 13) to
80°
