Window Regulator: Service and Repair



WINDOW REGULATOR

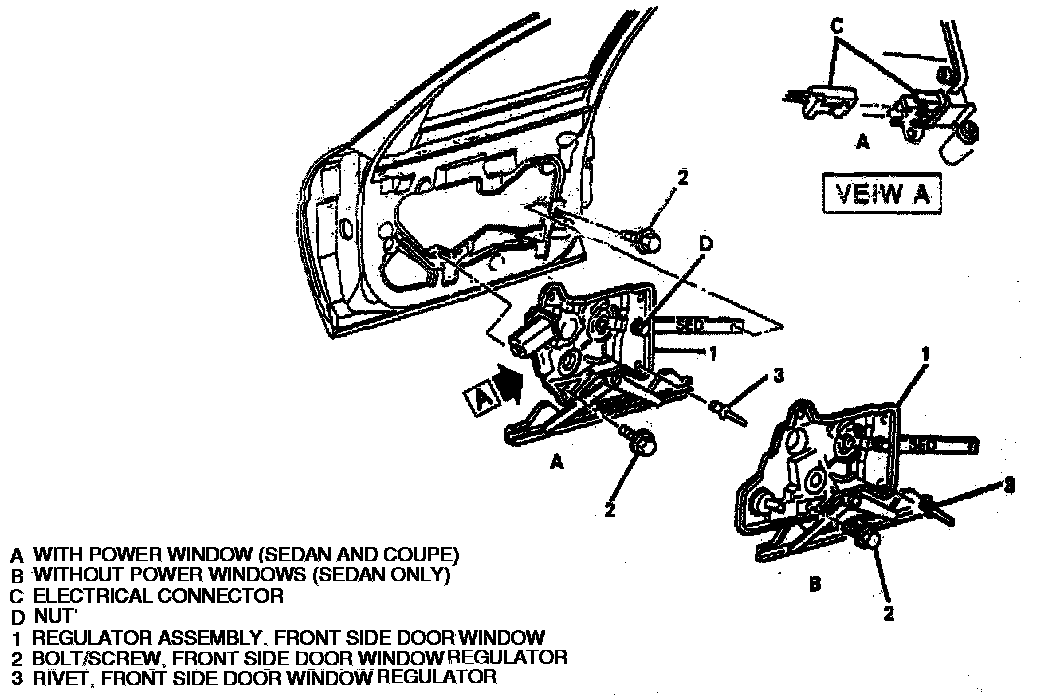

Coupe and sedan front doors use a arm regulator. The following procedures are for removal and replacement of both power and manual window regulators.

Remove







1. Door trim panel.
2. Water deflector.
3. Energy absorber.
4. Door window.
5. Electrical connector, if equipped.
6. Nut.
7. Rivets.
8. Bolts/screws.
9. Regulator.


Install

1. Position regulator by inserting bottom through access opening, then rotate top through opening while lowering the regulator to clear the top of the access opening and align holes in door inner panel.

2. Upper right base plate bolt/screw, followed by lower base plate bolt/screw.

Tighten

- Bolts/screws to 10 N.m (89 lb in).

3. Upper left rivet followed by lower right rivet.
4. Cam arm bolt/screw.

Tighten

- Bolt/screw to 10 N.m (89 lb in).

5. Cam nut.

Tighten

- Nut to 10 N.m (89 lb in).

6. Electrical connector, if equipped.
7. Door window.
8. Energy absorber.
9. Water deflector.
10. Door trim panel.
