Catalytic Converter: Service and Repair

REMOVAL
1. Raise and support the vehicle on a hoist.

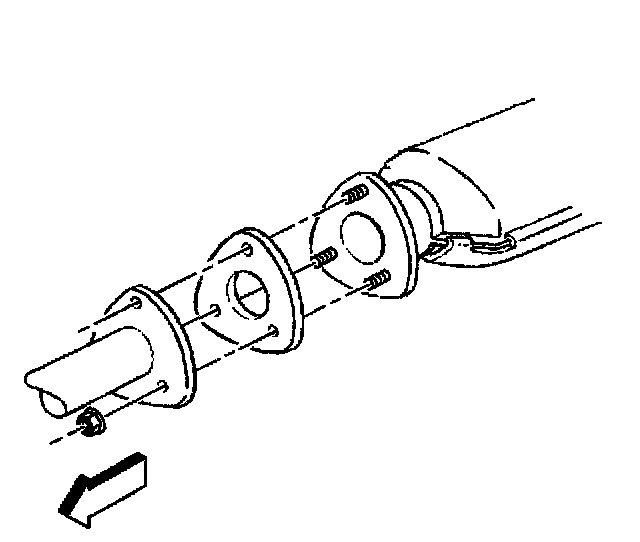

2. Remove the bolts at the front of the three-way catalytic converter.

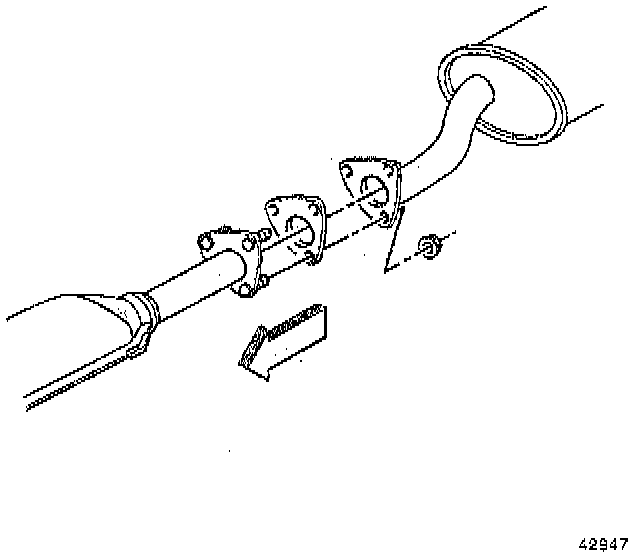

3. Unbolt the converter from the muffler.





4. Remove the converter from hangers.


5. Remove the converter from the front exhaust pipe.

INSTALLATION

CAUTION: The three-way catalytic converter requires the use of unleaded fuel only. Using leaded fuel will damage the converter and other emission system components.

1. Install the new three-way catalytic converter onto the exhaust pipe.
2. Install the converter to the converter hanger.
3. Install a new gasket with the muffler.
4. Check for clearance.
5. Check the alignment.
6. Tighten all clamps and fasteners to specifications.
^ Tighten to 50 Nm (37 ft. lbs.).
7. Lower the vehicle.
