L. Front Housing Assembly

- Tools Required:
- J 36798-2 Shift Shaft Bushing Adapter
- J 36798-1 Shift Shaft Bushing Installing Tool
- J 36190 Drive Handle
- J 36511 Oil Plug HexiBit (17 mm)

ASSEMBLE





1. Shift shaft front housing bushings using J 36798-1, J 36798-2, and J 36190.
- The bushing split line should not be lined up with the hydrolock keyhole in the front housing.

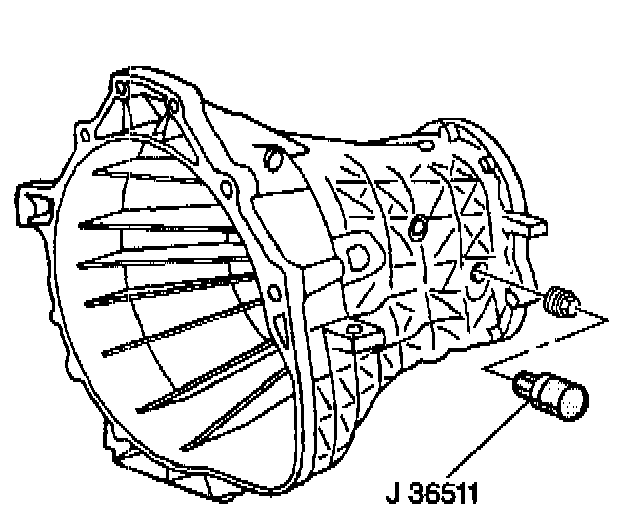

2. Oil fill plug using J 36511.
