Input Shaft Bearing Retainer Assembly

- Tools Required:
- J 29369-2 Input Shaft Bearing Retainer Oil Seal Remover
- J 23907 Slide Hammer
- J 36504 Input Shaft Bearing Oil Seal Installer





REMOVE OR DISCONNECT

Seal Replacement
1. Rubber seal lip with pliers.
- Exposing the metal lip:
A. Install J 29369-2 below metal lip of seal.
B. Expand to finger tight.
C. Turn five additional turns.
D. Install J 23907 into J 29369-2.
2. Input shaft bearing retainer oil seal.
3. Gasket material from the retainer using liquid gasket remover.

Inspect
1. Clutch release bearing pilot for scoring, wear, or cracks, especially at the flange.
2. Retainer for wear or damage.





INSTALL OR CONNECT

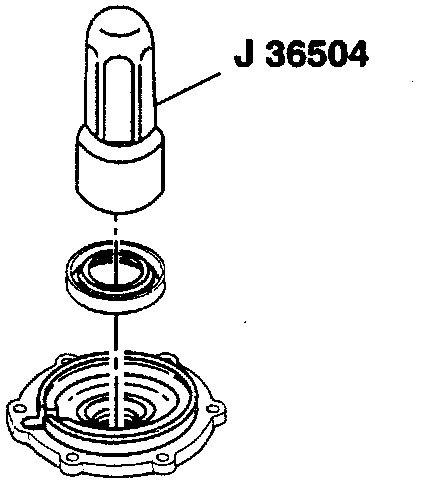

- NEW oil seal using J 36504.
- Fill between the seal lips with chassis grease.
