Condenser HVAC: Service and Repair

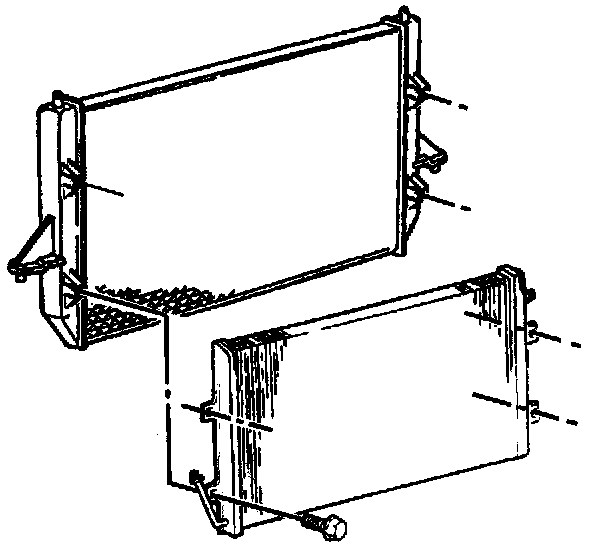

Condenser Assembly:

Remove or Disconnect

1. Discharge and recover refrigerant from the system.
2. Grille.
3. Compressor and condenser hose from the condenser.
4. Evaporator tube from the condenser.
5. Bolts retaining condenser to radiator.
6. Condenser.

Install or Connect

1. Condenser. Refer to "Refrigerant Oil Distribution", if replacing the condenser.
2. Bolts retaining condenser to radiator.

Tighten

- Bolts to 6 N.m (53 lb in).

3. Evaporator tube to the condenser.
4. Compressor and condenser hose to the condenser.
5. Grille.
6. Refrigerant to the system.
- Check the system for leaks.
