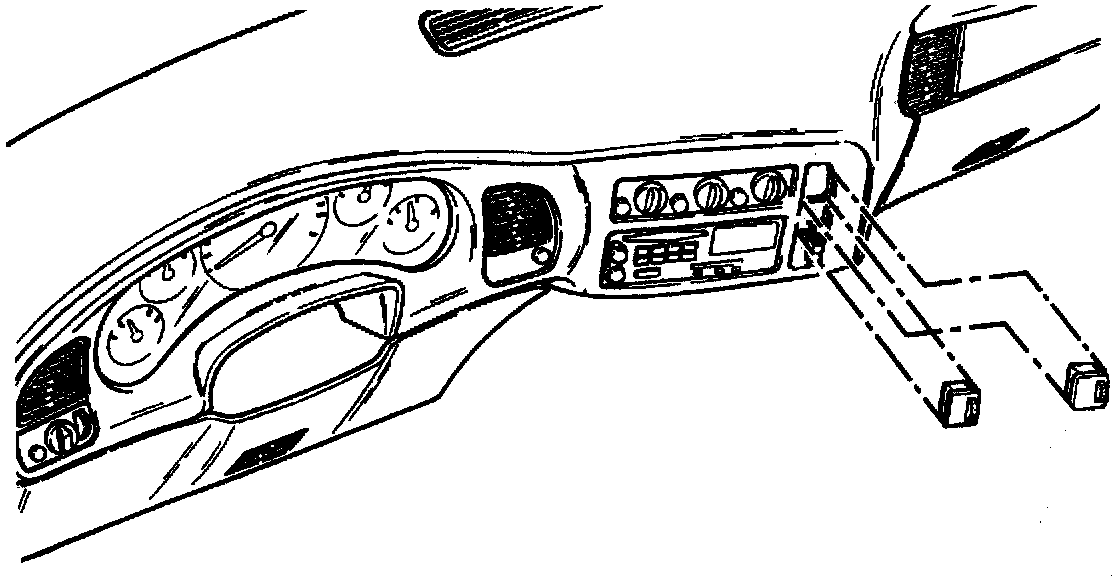

Auxiliary Heater Switch

Auxiliary Heater Switch:

Remove or Disconnect

1. Instrument cluster trim plate.
2. Electrical connector from switch.
3. Switch from bezel by releasing tabs on sides of switch.

Install or Connect

1. Switch to bezel by snapping into place.
2. Electrical connector to switch.
3. Instrument cluster trim plate.
