Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1997
>>
Astro Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Shift Controls
Transmission Shift Controls

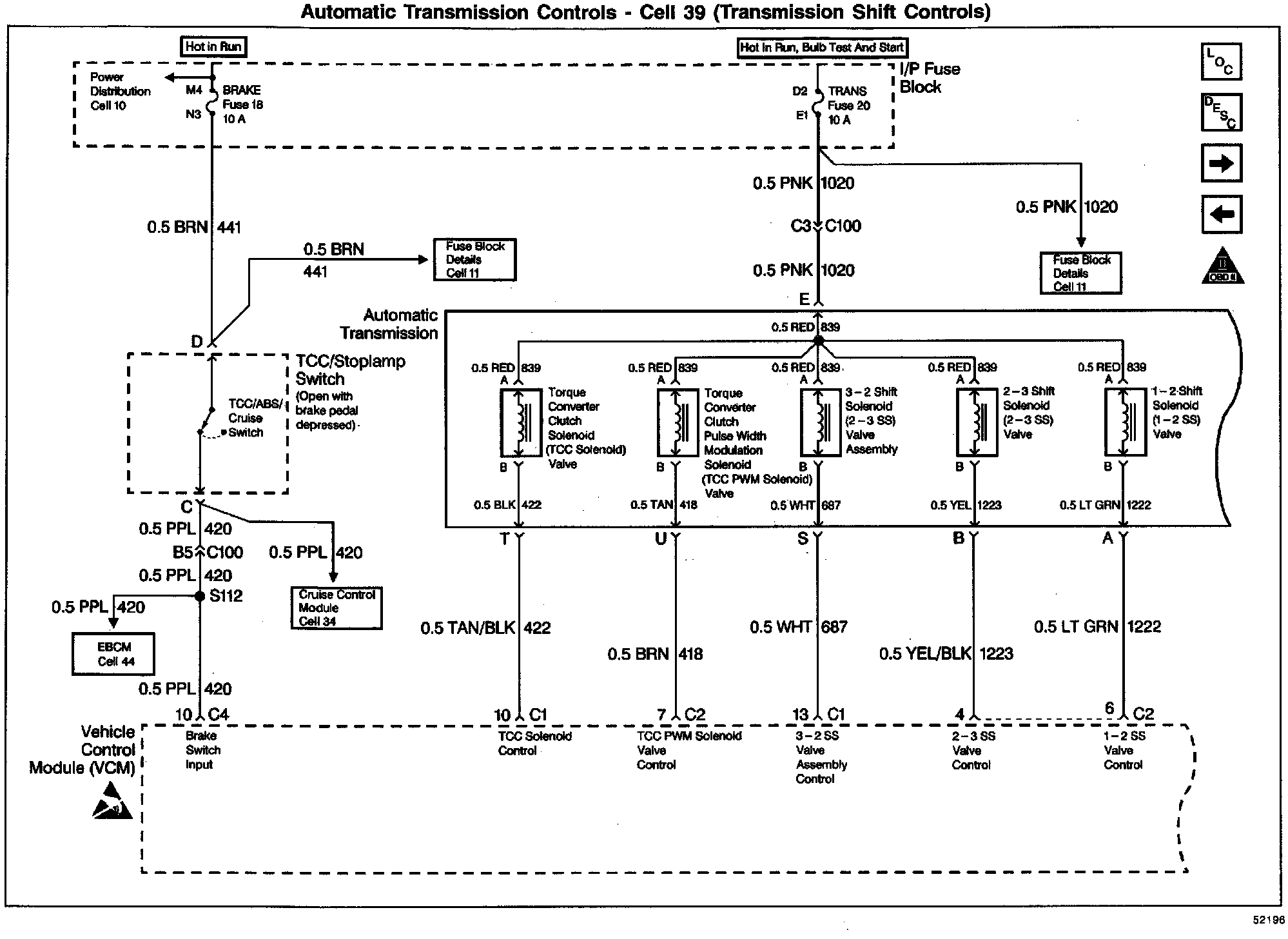

Wiring Diagram:
