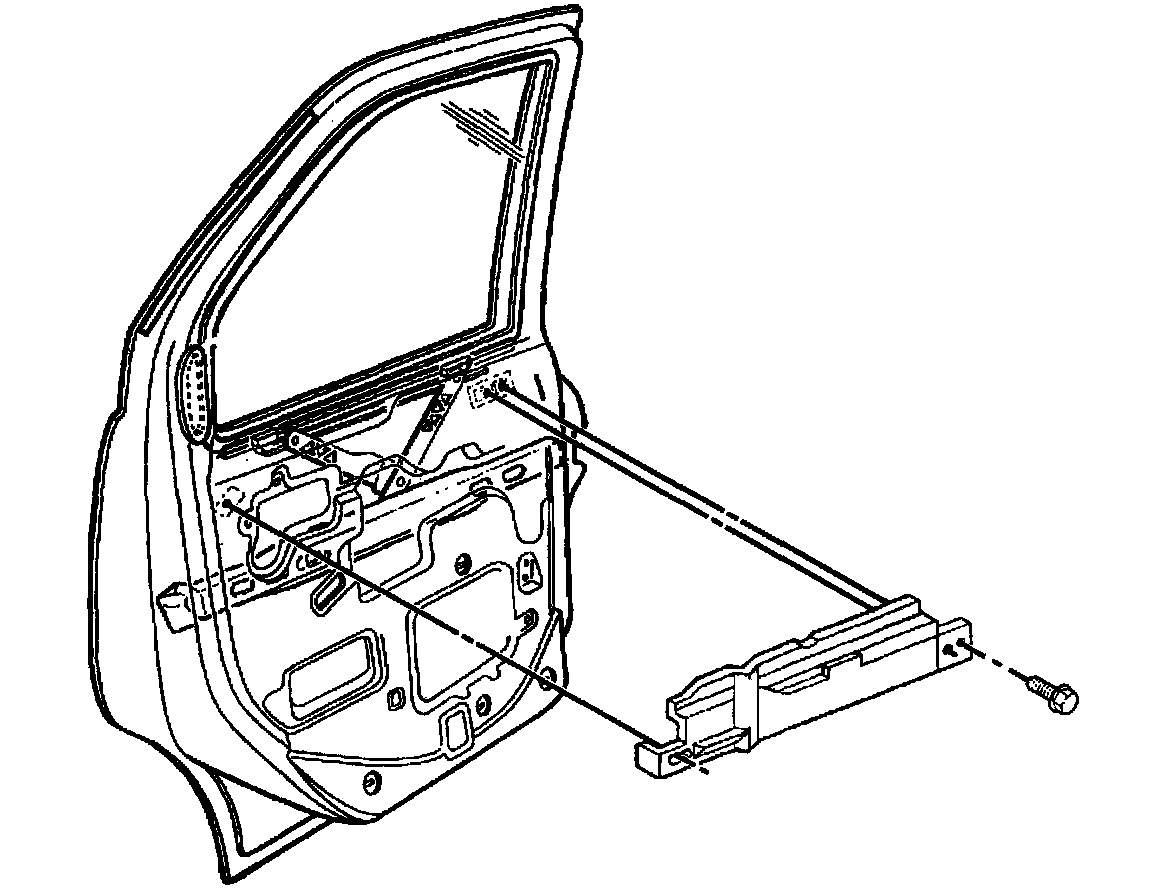

Inner Panel Upper Bar

Inner Panel Upper Bar:

Remove or Disconnect

1. Trim Panel.
2. Three bolts retaining the bar to the door.
3. Bar from the door.

Install or Connect

1. Bar to the door.
2. Three bolts retaining the bar to the door.

Tighten
^ Bolts to 25 N.m (18 lb ft).

3. Trim panel.
