External Components

CLEAN
- The transfer case using solvent and a stiff brush.






REMOVE OR DISCONNECT

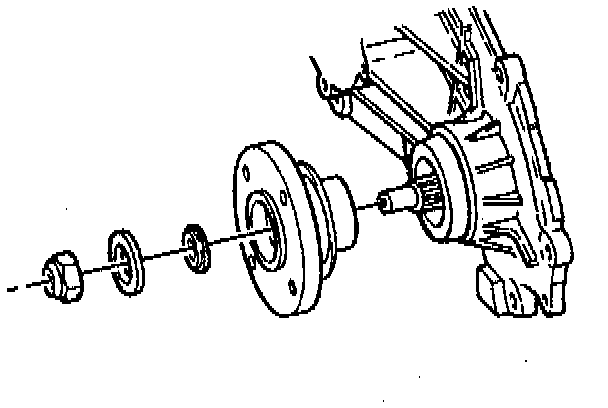

1. Front output flange nut, steel flat washer, and rubber sealing washer from the front output shaft.
2. Front output flange from the front output shaft.
3. Speed sensor bolt and speed sensor from the extension housing.

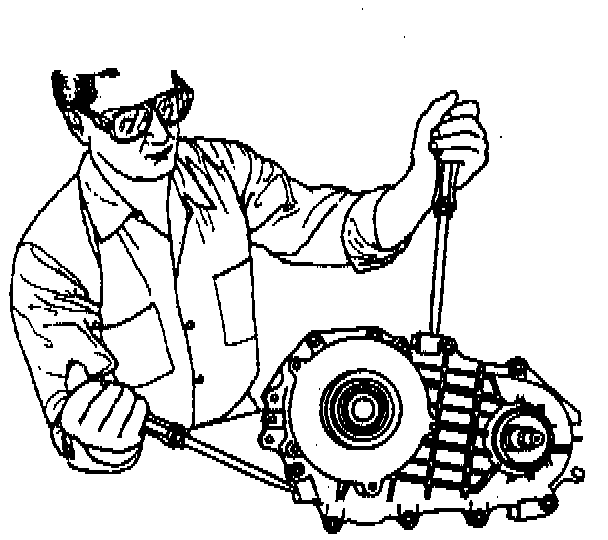

4. Front cover bolts from the rear case half.





5. Front cover by prying on the tabs provided.
