Lock Lever

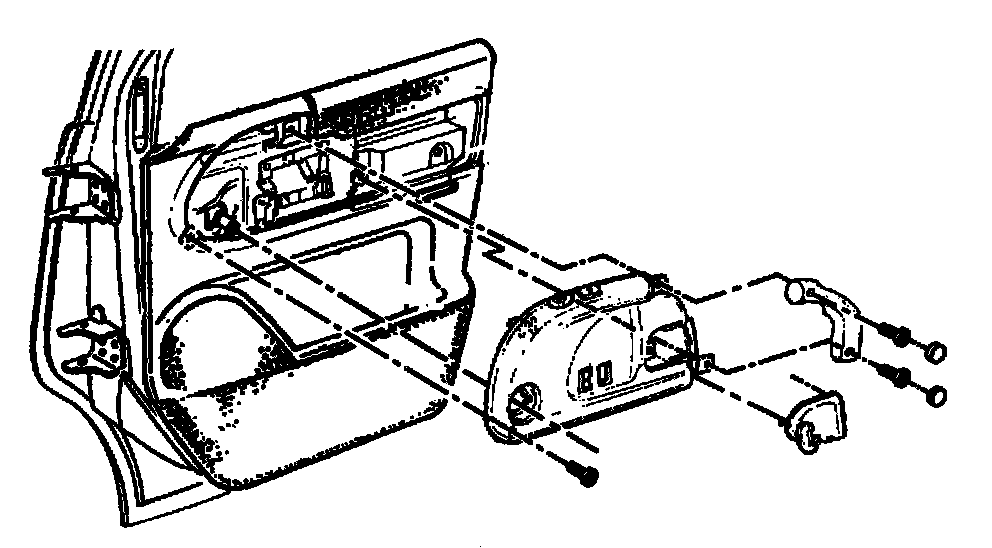

Accessory Switch Mount Plate W/ Lock Lever Escutcheon:

Lock Rod Retainer:

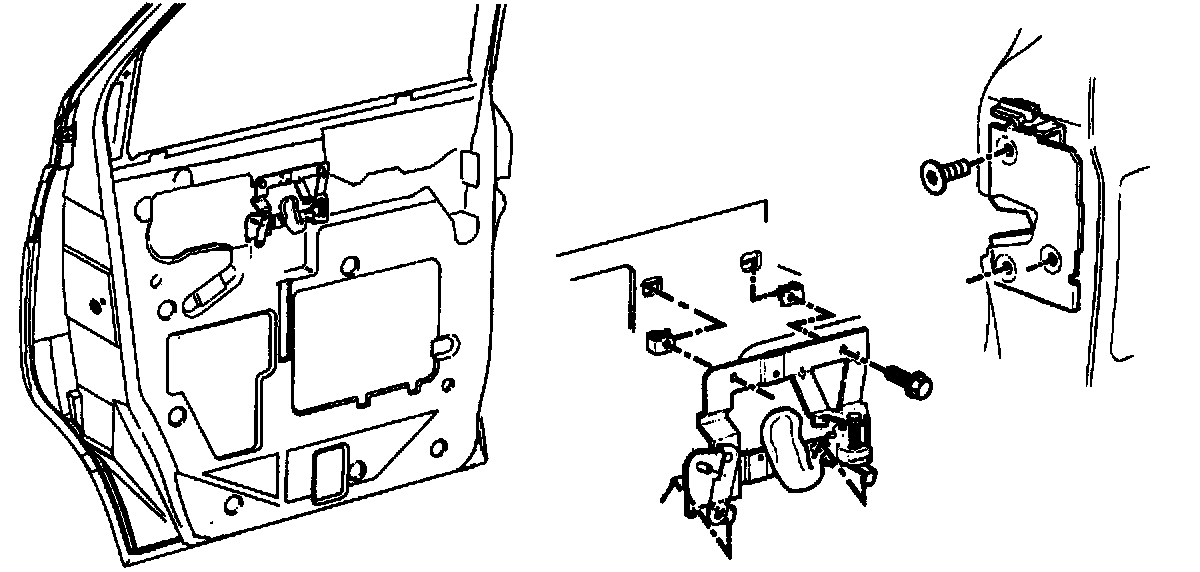

Lock Lever & Lock Assembly:

Remove or Disconnect

1. Trim panel.
2. Clip from the lock rod.
3. Bolts retaining the lever to the door.
4. Lock lever from the door.

Install or Connect

1. Lock lever to the door.
2. Bolts retaining the lever to the door.

Tighten
^ Bolts to 9 N.m (80 lb in).

3. Clip to the lock rod.
4. Trim panel.
