Output Shaft, Reaction Gear, Low/Rev Clutch Removal

REMOVAL PROCEDURE
- Tools Required:
- J 29837 Output Shaft Support Fixture

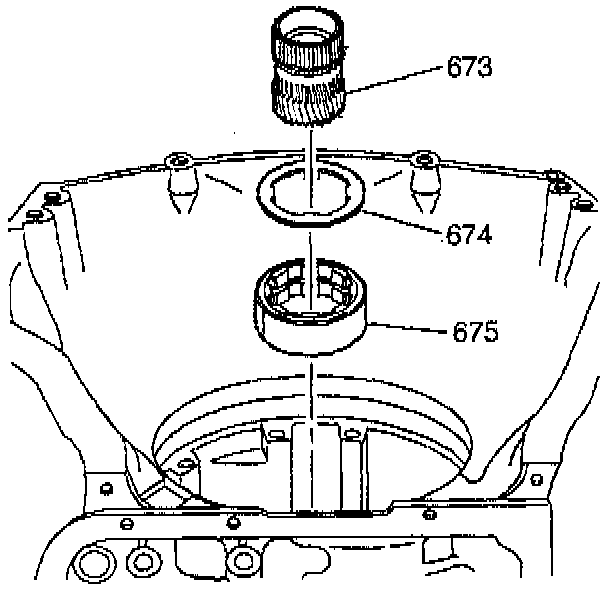

1. Remove the following components:
a. The reaction sun gear
b. The thrust washer
c. The low/reverse roller clutch race





2. Remove the low/reverse support retainer ring.

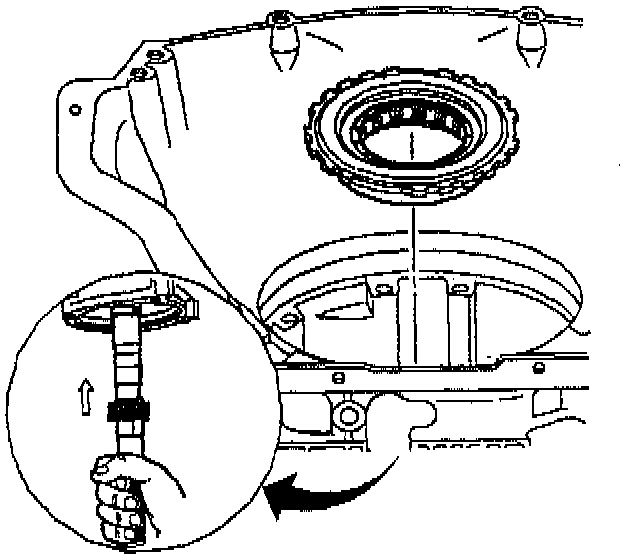

3. Push up on the output shaft in order to loosen the low/verse clutch support.
4. Remove the low/reverse clutch support.

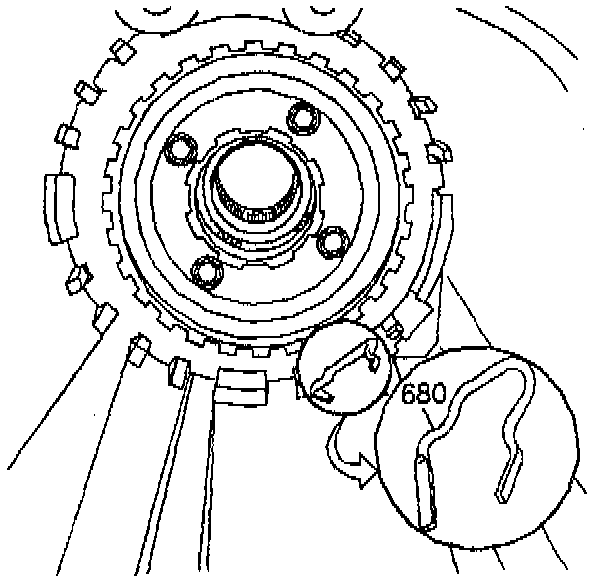

5. Remove the transmission spring (low/reverse clutch support retainer).





6. Remove the reaction carrier assembly.

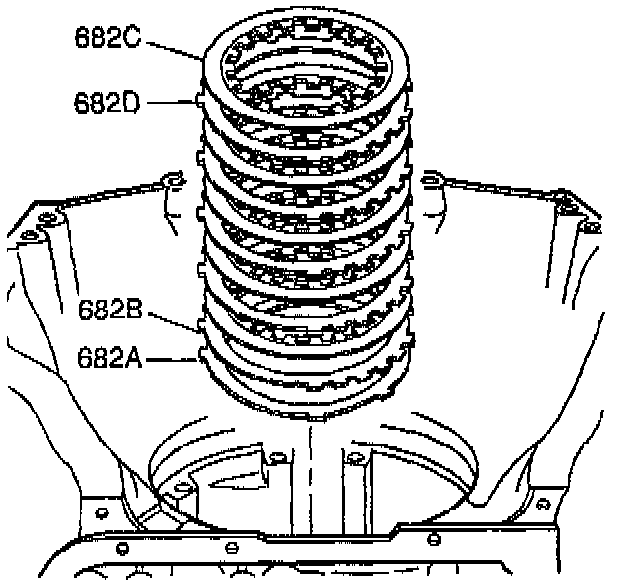

7. Remove the following components:
- The low/reverse clutch fiber plate assembly
- The low/reverse clutch steel plates
- The spacer
- The low/reverse clutch selective plate
- The low/reverse clutch waved plate

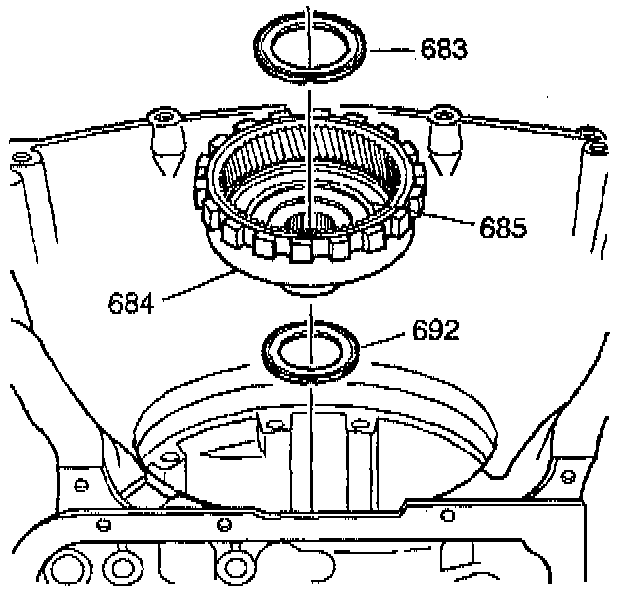

8. Remove the following components:
- The thrust bearing assembly (reaction carrier support)
- The internal reaction gear
- The internal reaction gear support
- The reaction gear support bearing
9. Remove the output shaft support fixture.

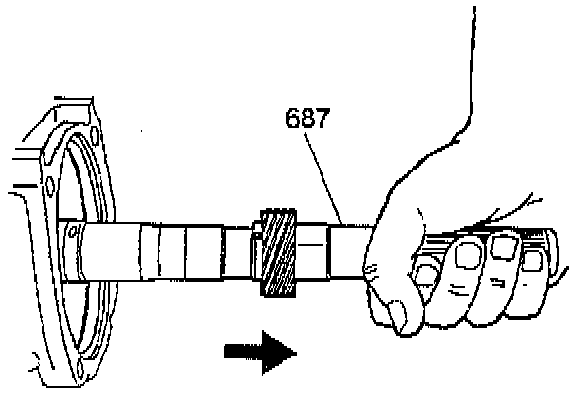

10. Remove the output shaft.
