Fluid Pump: Service and Repair

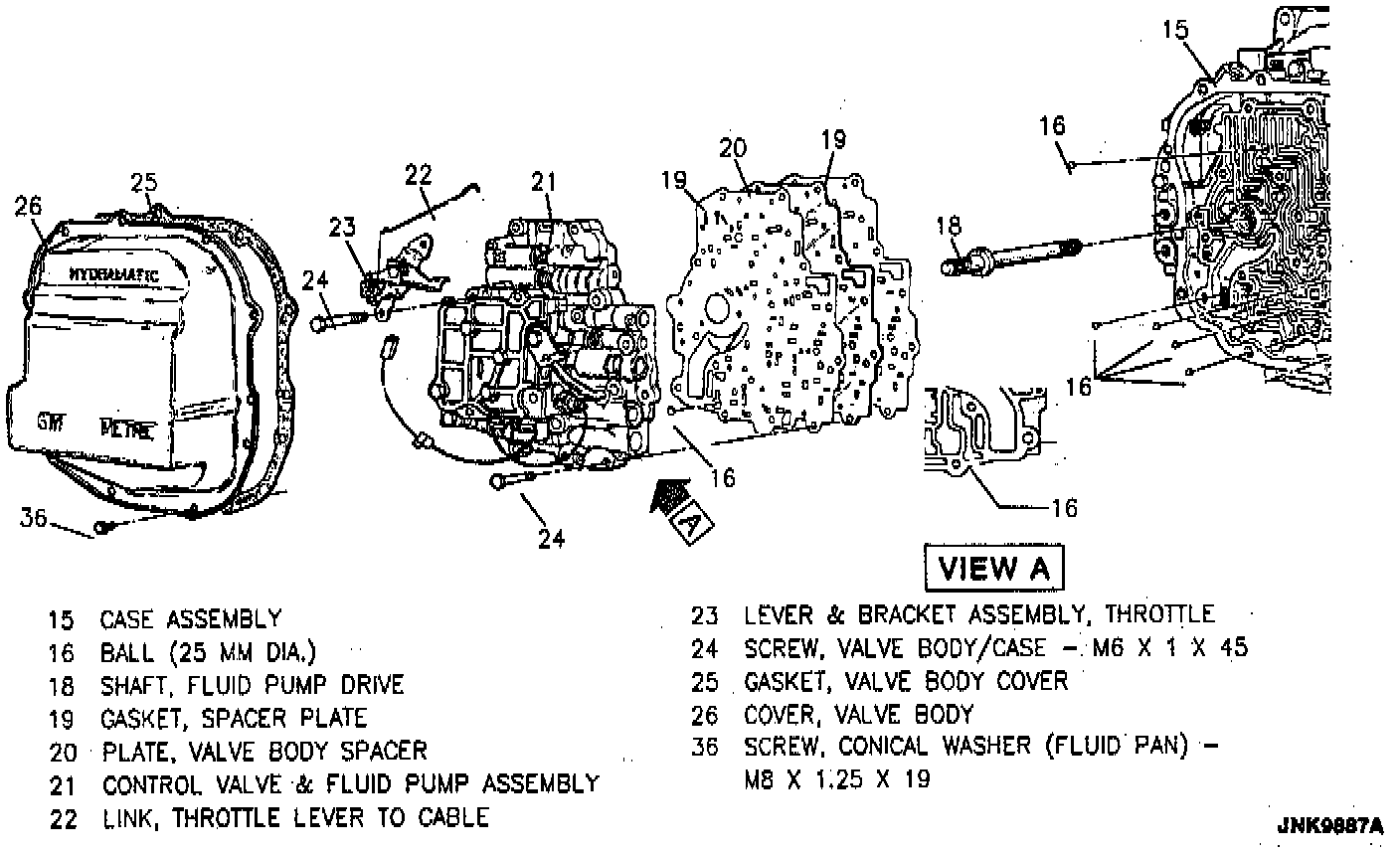

REMOVE OR DISCONNECT
1. Negative battery cable.
2. TV cable from transaxle, refer to "TV Cable Replacement."





3. Valve body cover. Refer to "Transaxle Mount, Bracket, Valve Body Cover and Case Cover."





4. Bolt securing TCC solenoid to auxiliary valve body and solenoid. Remove TCC solenoid wiring connector from case connector.
5. TCC wires from pressure switches.
6. Bolt securing TV linkage and bracket assembly to valve body and TV linkage.
7. Remaining bolts securing valve body to case cover and valve body.

Important
- Do not lose the six check balls.
- Do not remove the green bolt.

8. Green bolt and separate auxiliary valve body from valve body.
9. Check ball behind control valve assembly.

Important
- If any service is required on the valve body and/or oil pump, refer to Valve Body Unit Repair.

INSTALL OR CONNECT
1. Check valve behind control valve assembly.
2. Auxiliary valve body to valve body with green bolt.

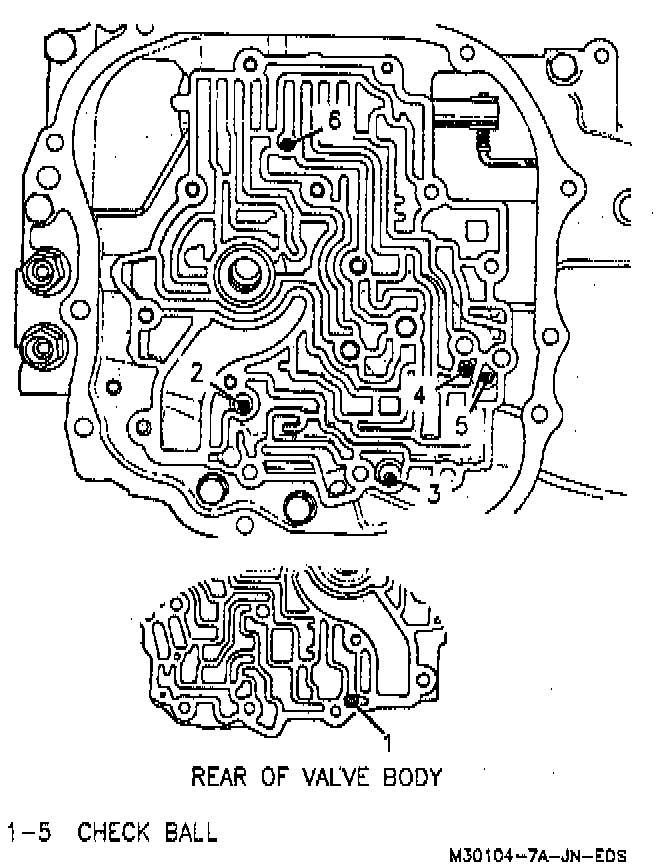

3. Check ball in valve body. Refer to the image.





5. Valve body to case cover.
6. TV bracket and linkage.
7. TCC wires and wiring connectors.
8. TCC solenoid.

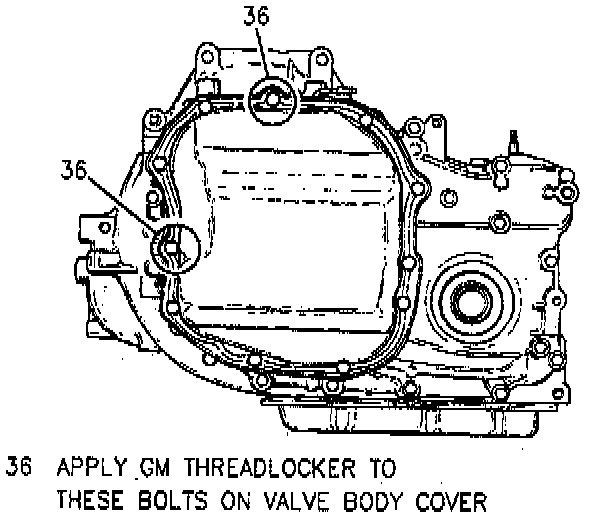

9. Valve body cover with a new gasket. Refer to "Transaxle mount, Bracket, Valve Body Cover and Case Cover."
10. TV cable to transaxle, refer to "TV Cable Replacement."
11. Negative battery cable.

Adjust
- TV cable, refer to "TV Cable Adjustment."
- Oil level. Refer to "Transaxle Oil Level Checking Procedure."
