Differential Case Disassembly

^ Tools Required:
- J 22888 Puller
- J 22888-30 Puller Legs
- J 23598 Pilot
- Or Equivalents

DISASSEMBLE

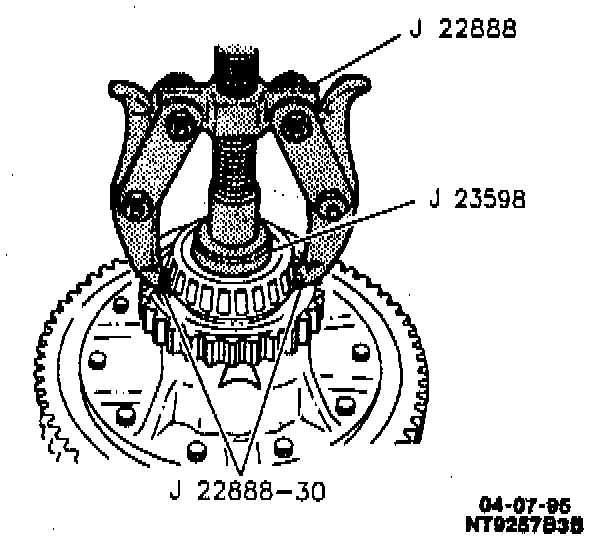

1. Left differential side bearing from differential case using a J 22888 with the J 22888-30 and a J 23598.
2. Ten bolts and differential ring gear from differential case.
3. Right differential side bearing from differential case using a J 22888 with the J 22888-30 and a J 23598.
4. Vehicle speed sensor (VSS) ring using J 22888 and a J 23598.
5. Pinion shaft roll pin and pinion shaft from differential case.
6. Pinion gears, pinion gear thrust washers, side gears and side gear thrust washers from differential case.
