Keyless Entry Receiver: Service and Repair

Receiver Replacement: Removal Procedure:

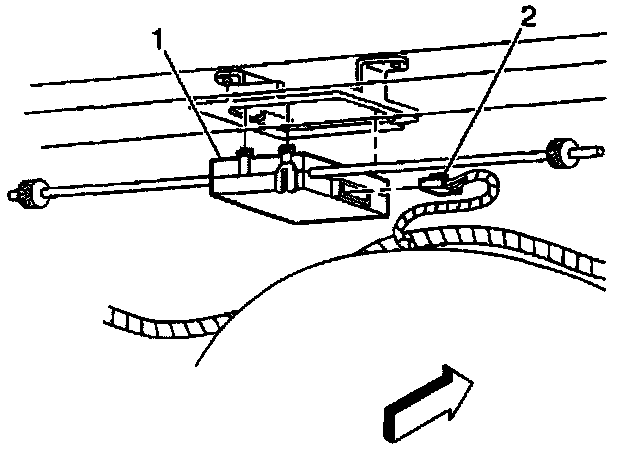

Removal Procedure

The service replacement receiver must also be programmed to accept the TPM sensors. The TPM system uses the same receiver as the Remote function Actuation (RFA) system. Thus, the TPM sensors and RFA transmitters must both be reprogrammed. Refer to Transmitter Programming/Synchronization in Key Less Entry. TPM Sensor Programming In Tire Pressure Monitor. Service and Repair

1. Turn the ignition to OFF.
2. Remove the left rear wheel tub trim plate (trim is fastened by double sided tape).
3. Gently pull on the retainer at the back side of the receiver.
4. Pull out the receiver only enough to expose the connector.
5. Disconnect the receiver connector.

Receiver Replacement: Installation Procedure:

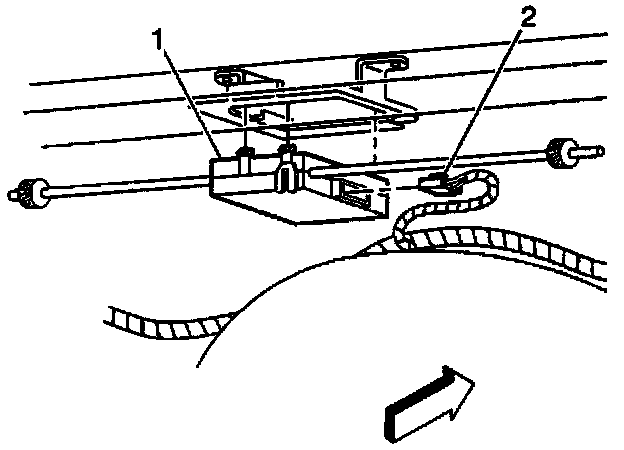

Installation Procedure

1. Connect the receiver connector.
2. Line up the receiver with the slots on the retainer.
3. Snap the receiver into place on the retainer.
4. Install the left rear wheel tub trim plate
5. Program the transmitters. Refer to Transmitter Programming/Synchronization.
6. Program the TPM sensors. Refer to TPM Sensor Programming in Tire Pressure Monitor.
