Rear Toe Adjustment

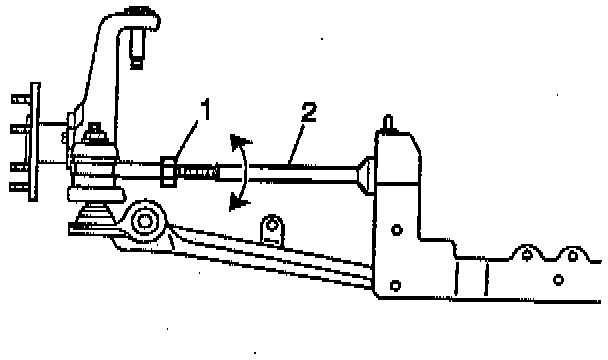

1. Loosen the jam nut on the tie rod.
2. Rotate the inner tie rod to the required toe specification setting.
3. Tighten the jam nut on the tie rod.
4. Recheck the toe setting after tightening.
5. Readjust the toe setting if necessary.
