Torque Specifications

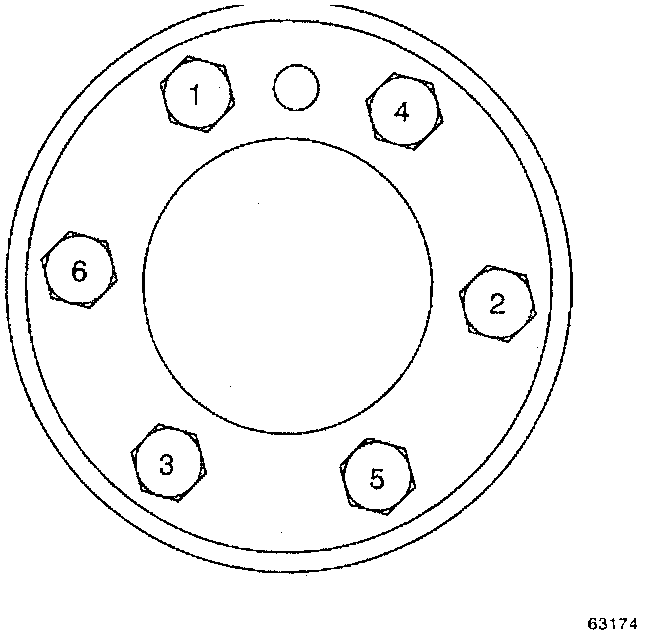

- Tighten the engine flex plate bolts first pass in sequence to 20 Nm (15 lb ft).
- Tighten the engine flex plate bolts second pass in sequence to 50 Nm (37 lb ft).
- Tighten the engine flex plate bolts final pass in sequence to 100 Nm (74 lb ft).
