Power Window Motor: Service and Repair

Remove or Disconnect

1. Trim panel.
2. Water deflector.
3. Window.
4. Lower window regulator 3/4 of the way down.

Important
Scribe the location of the upper window regulator bolts before loosening or removing them.

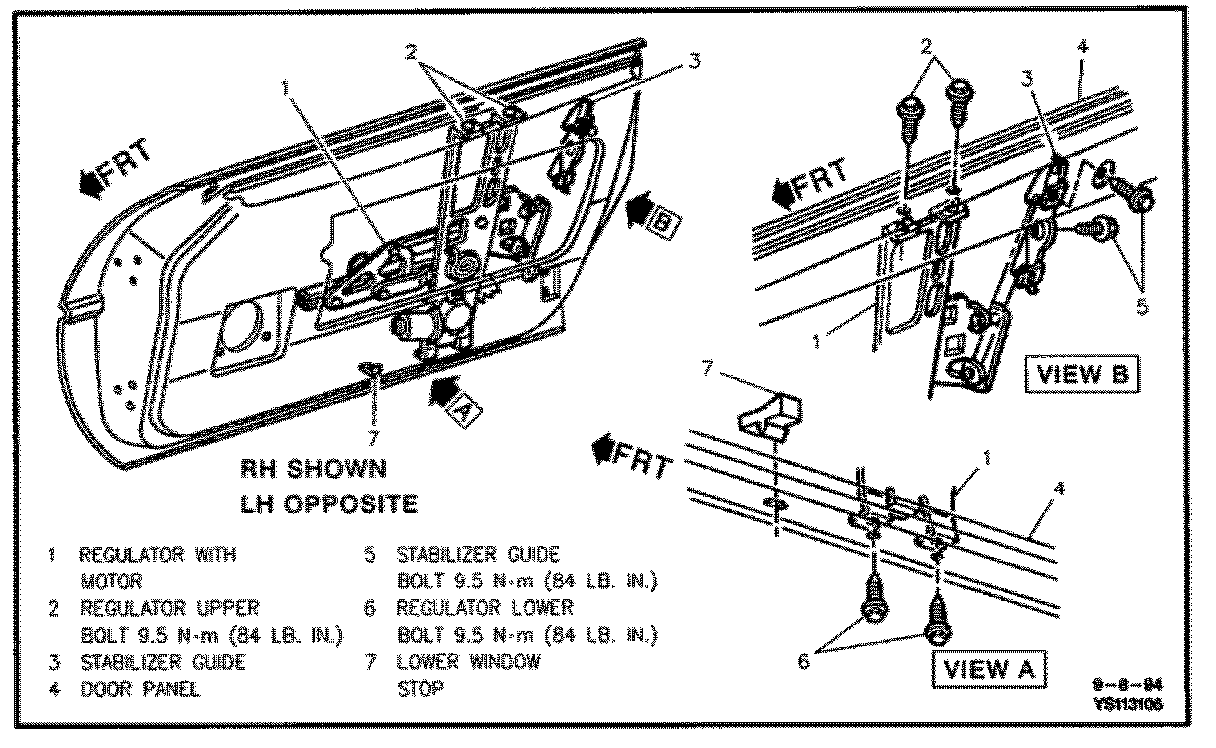

5. Upper and lower window regulator mounting bolts.
6. Window regulator motor harness electrical connector.
7. Window regulator assembly from door by rotating assembly counterclockwise, tilt upper rear surface out from door, rotate clockwise and lift regulator assembly out.

Install or Connect

1. Window regulator assembly into door.
2. Start upper and lower window regulator mounting bolts, align upper bolts with scribe line, then tighten bolts.

Tighten
Window regulator bolts to 9.5 N.m (84 lb in).

3. Window regulator motor harness electrical connector.
4. Window.
5. Water deflector.
6. Trim panel.
